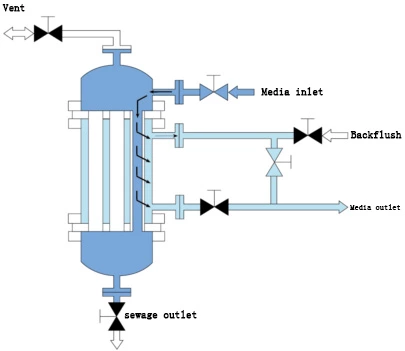

The Unite cross-flow filtration system utilizes metal membrane filterelements as the filtration unit. The system provides inside-out filtration,offering continuous filtration cycles through cross-flow filtration. Thematerial flows through the filter element, which is open at both ends.The filtrate passes through the porous filter element and exits thesystem, while solid particles are retained in the circulating flow. Thismethod is suitable for filtering materials with specific particlecharacteristics or for applications requiring continuous reactionprocesses, maximizing the retention of valuable solid particles, such asprecious metal catalysts.
Cross-flow Filtration System uses parallel flow to reduce surface foulingand prevent cake formation, enabling continuous solid removal andstable filtration performance under high solid loading. This design lowerscleaning frequency, extends filter element service life, and supportsreliable operation in continuous industrial processes.
In addition, the system is well suited for high-viscosity, high-temperature,and high-pressure applications. Its robust design ensures consistentseparation efficiency, reduces unplanned downtime, and provideseffective protection for downstream equipment in demanding industrialenvironments.
Unique inside - out filtration structure for efficient separation.
High shear force keeps filter cake layer thin, maintaining high flux during prolonged filtration.
Minimizes residual liquid volume within the equipment.
Fluid flows tangentially to membrane surface to retain solid particles in main fluid.
Solid materials collectable at top or bottom of filter, facilitating filter cake formation.
The filter supports the washing of filter cake.
pre-coated filters are
fully automatic backwashing filters have
