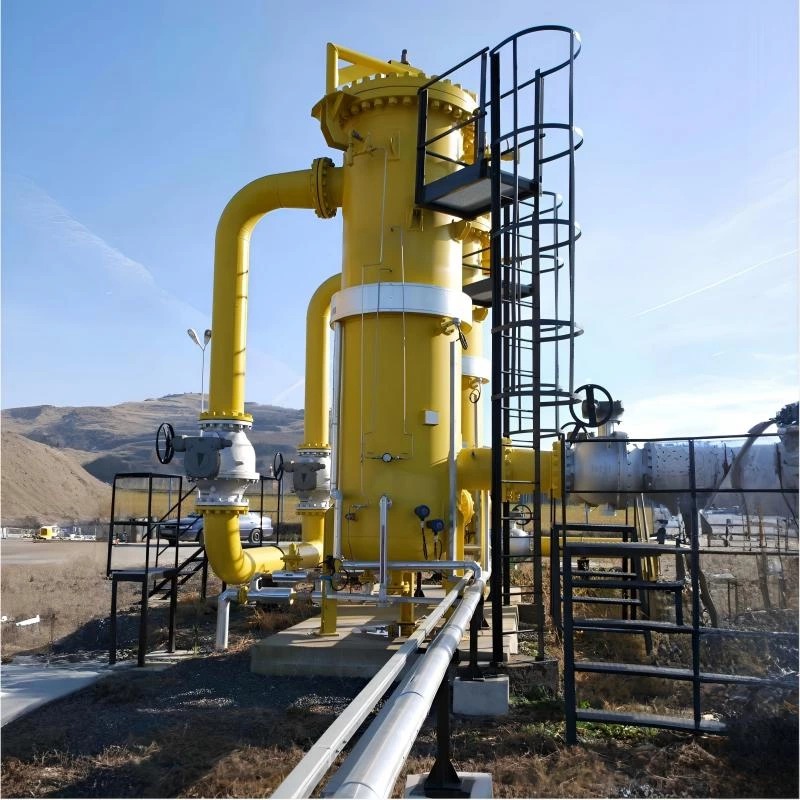

Vertical vane separators are used for droplet removal applications and insituations where space is limited.
Horizontal vane separators are used for handling high flow rates andlarge droplets.
Economical vane separators are suitable for applications with space andpiping constraints
Single-stage gas separator for efficient liquid removal
Wide range of liquid handling capabilities, including droplets
Extremely high gas handling capacity
Can be custom-designed for three-phase gas streams
Sufficient dirt-holding capacityFeatures: These separators are designed to provide efficient liquidremoval at high gas flow rates. They effectively handle large liquid slugsand are easily adapted to three-phase separation.

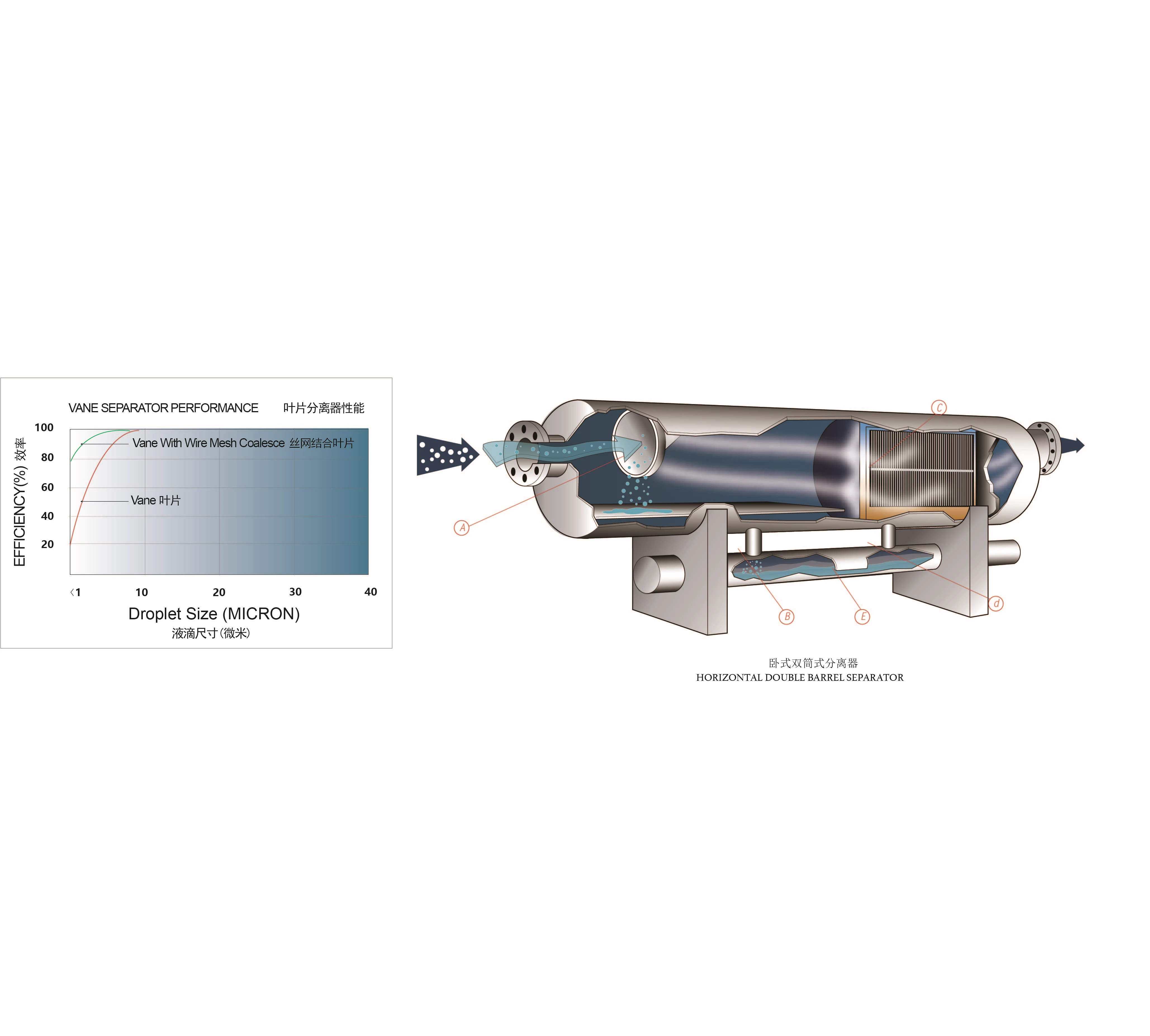

• The gas and liquid entering the container are diverted by an inletbaffle to remove large droplets and free-flowing liquid.
• The liquid fallsthrough a hydrostatic plate to the bottom of the container and entersthe first storage tank.
• The gas and remaining water mist enter thevane separator:
• The remaining liquid collected at the bottom of thevane assembly is discharged through a drain pipe.
• The submergeddrain pipe and sealing structure create an optimal drainage method.
•The drain pipe and liquid level controller ensure proper liquid dischargefrom the container.
(a) The gas and liquid entering the vessel are diverted by an inlet baffleto remove large droplets and free water mist.
(b) The liquid flows into the liquid storage chamber through the firstdrain pipe.
(c) The clean gas and remaining water mist enter the vane separator.
(d) The remaining droplets collected at the bottom of the vane demisteroutlet enter the liquid storage chamber through thesecond drain pipe.
(e) The liquid storage chamber, which collects liquid from both drainpipes, can be equipped with a level gauge
