Unite compressed air filters are primarily used to filter impurities such asdust, metal wear particles, condensed water, lubricants, acidiccondensate, oil mist, and hydrocarbons from compressed air systems.
The filter housing is made of high-quality aluminum alloy and carbonsteel, processed using advanced technology, and features anelectrostatic epoxy resin powder coating.
The internal filter element is made of imported high-efficiencyseparation filter material and special coalescing materials, with acomplete range of specifications and precision grades, and can be usedas an equivalent replacement for imported filter elements. Optionalaccessories such as differential pressure gauges, liquid level indicators,and automatic drain valves are also available. Through years of practicalapplication, this product can completely replace imported products andmeet the various requirements for compressed air purification in variousdomestic and international applications.

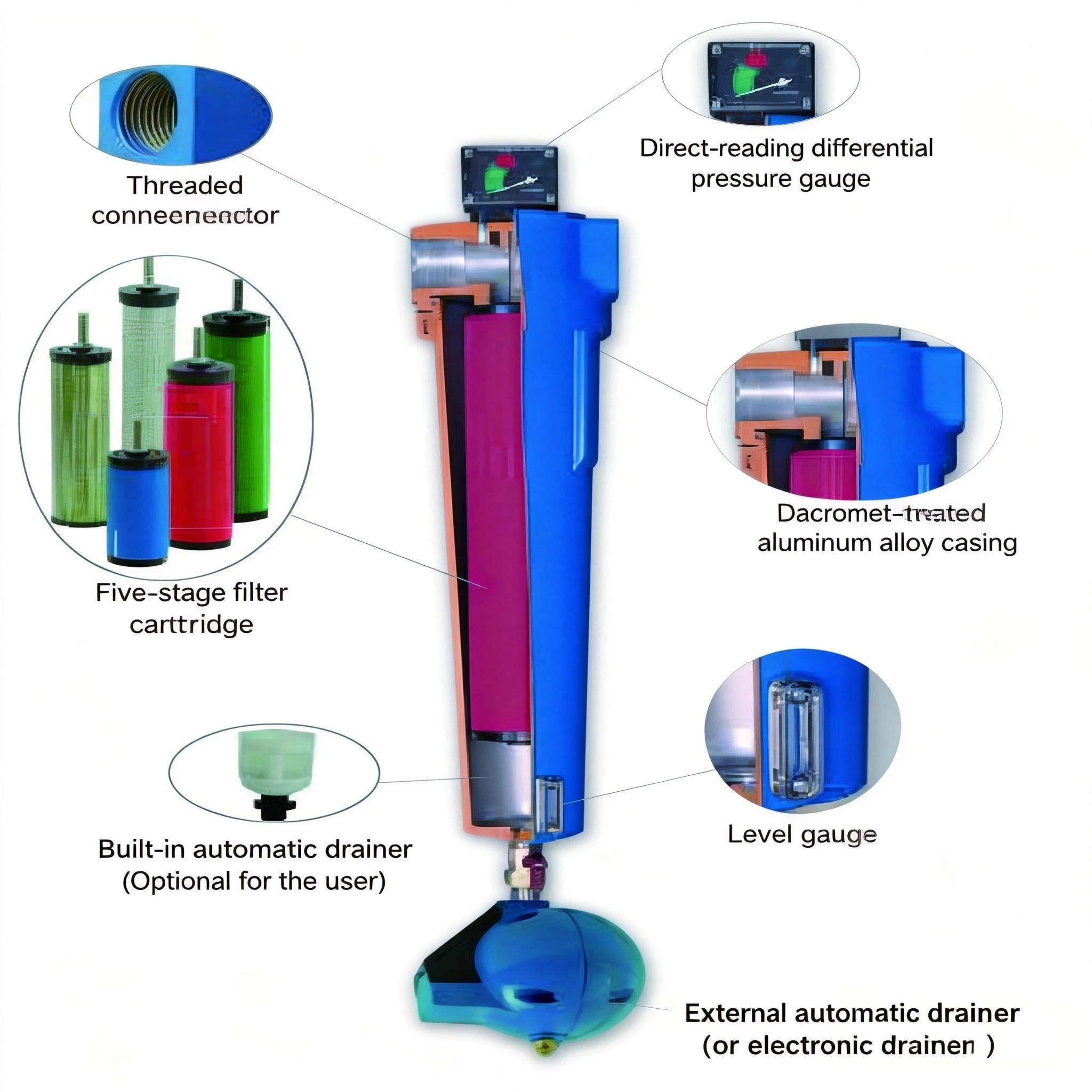

Enlarged flow cross-section to reduce pressure drop
Housing made of high-quality aluminum alloy and carbon steelmaterials
Two basic types of connections: threaded and flanged, with airflowdirection clearly marked on the housing for easy installation
Advanced surface treatment technology applied to both the interiorand exterior of the housing to improve durability and corrosionresistance, extending service life
A dedicated differential pressure gauge indicates the optimal time forfilter element replacement, ensuring higher utilization of the filterelement at the lowest pressure drop
A liquid level gauge facilitates monitoring of the liquid level, allowingfor timely preventative maintenance to avoid downstreamcontamination
The automatic drain device uses an indirect drainage type, ensuringsmooth, unobstructed, and reliable water drainage.
Intake Filtration: Compressed air enters through the filter inlet, firstpassing through a coarse filter layer to remove larger particles andimpurities.
Airflow Distribution: The air is evenly distributed onto the filter mediathrough an internal distribution device.
Fine Filtration: The air continues to flow through the filter element,which captures smaller particles, oil mist, and moisture through its tinypores.
Liquid Separation: Moisture and oil mist within the filter are collected ina sedimentation chamber and separated by gravity.
Clean Air Discharge: After multi-stage filtration, the clean air exitsthrough the exhaust port for use by the system.
Automatic Drainage: Some filters are equipped with an automaticdrainage device that periodically drains accumulated water and oil,ensuring efficient filter operation
pre-coated filters are
fully automatic backwashing filters have
