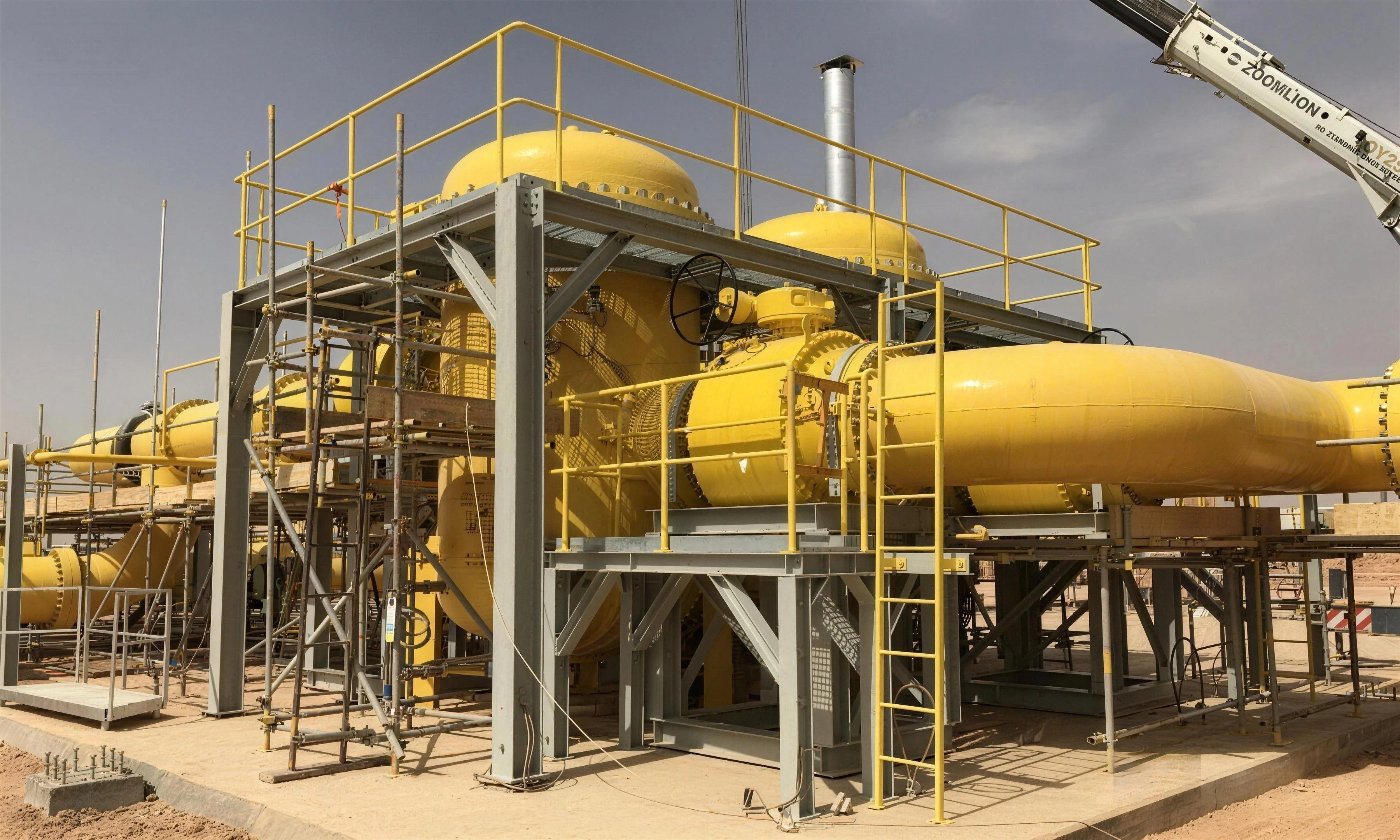

Unite's custom-designed prefabricated pipeline filters feature a uniquedesign to meet any application requirement. Whether customers needspecial alloys, unique pipe connections, cover opening systems, orspecific dimensions,
ISO9001-2008 Quality Management
ASME "U" and "UM" code stamped, "N" stamp available, compliant with
Brazilian NR-13 requirements
European standards - compliant with DIN/PED
Reasonable component size design to meet any specific flow rate andfiltration accuracy requirements
| Perforation Size (inches) | Plate Thickness | Hole Pattern | Open Area (%) |
|---|---|---|---|
| 0.020 | 26 | Straight | 16.0 |
| 1/32 | 26 | Straight | 28.0 |
| 3/64 | 26 | Straight | 30.2 |
| 0.045 | 26 | Staggered | 36.0 |
| 1/16 | 26 | Straight | 31.0 |
| 1/8 | 26 | Staggered | 47.9 |
| 5/32 | 26 | Staggered | 63.0 |
| 1/4 | 26 | Staggered | 42.0 |
| 3/8 | 26 | Staggered | 52.0 |
| 1/2 | 26 | Staggered | 47.9 |
| Screen Hole Size | Wire Diameter (inches) | Open Hole Size (inches) | Open Hole Size (microns) | Open Area (%) |
|---|---|---|---|---|
| 20 | Φ0.016 | 0.0340 | 864 | 46.2 |
| 40 | Φ0.010 | 0.0150 | 381 | 36.0 |
| 60 | Φ0.0075 | 0.0092 | 234 | 30.5 |
| 80 | Φ0.0060 | 0.0065 | 165 | 27.0 |
| 100 | Φ0.0045 | 0.0055 | 140 | 30.3 |
| 200 | Φ0.0021 | 0.0029 | 74 | 33.6 |
| 325 | Φ0.0014 | 0.0017 | 43 | 30.0 |
| 400 | Φ0.0015 | 0.0381 | 38 | 36.0 |
pre-coated filters are
fully automatic backwashing filters have
