The Unite U-JM-DY high-flow filter is a high-flow filter designed for usewith high-flow filter cartridges. It is primarily used in applicationsrequiring high flow rates, particularly in the field of water treatment. Thehigh-flow filter's unique characteristics of high flow rate and smallfootprint solve the problems associated with traditional filters, such ashigh initial cost, long replacement times, and complicated operation.

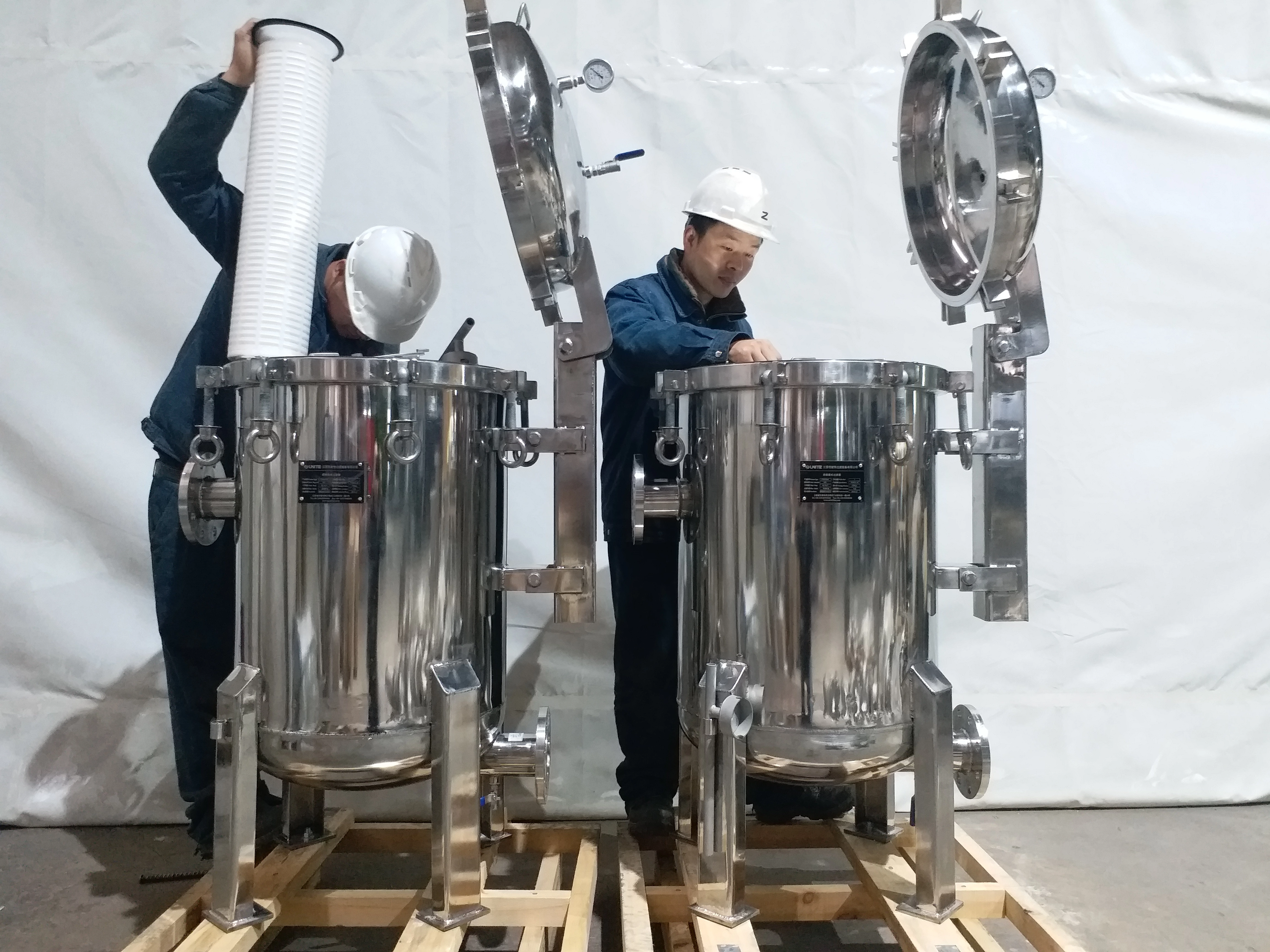

Unite high-flow filters are available in two main options: 304 and 316Lstainless steel.
The stainless steel construction ensures excellentcorrosion resistance and allows for wide application across various fields.

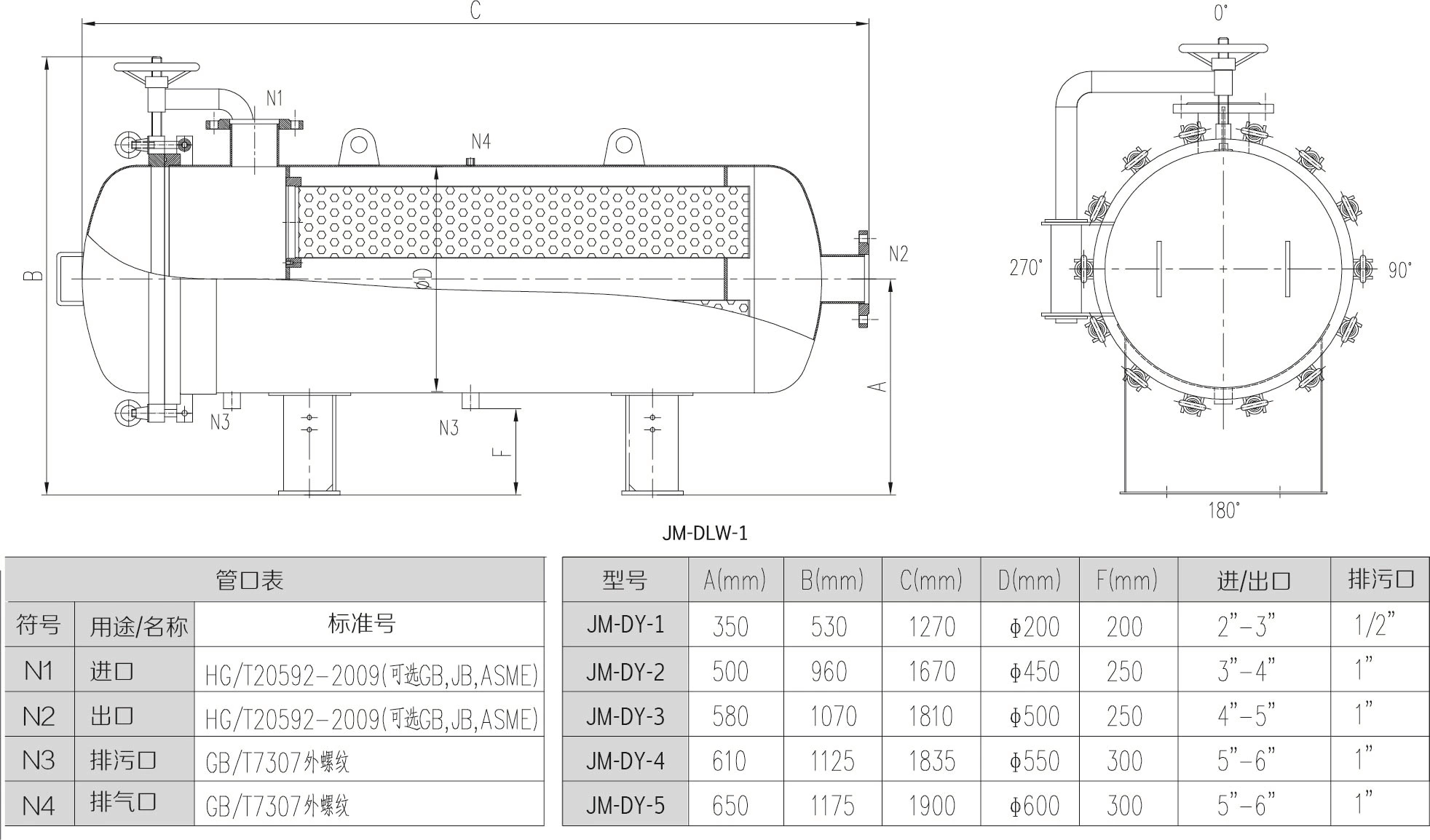

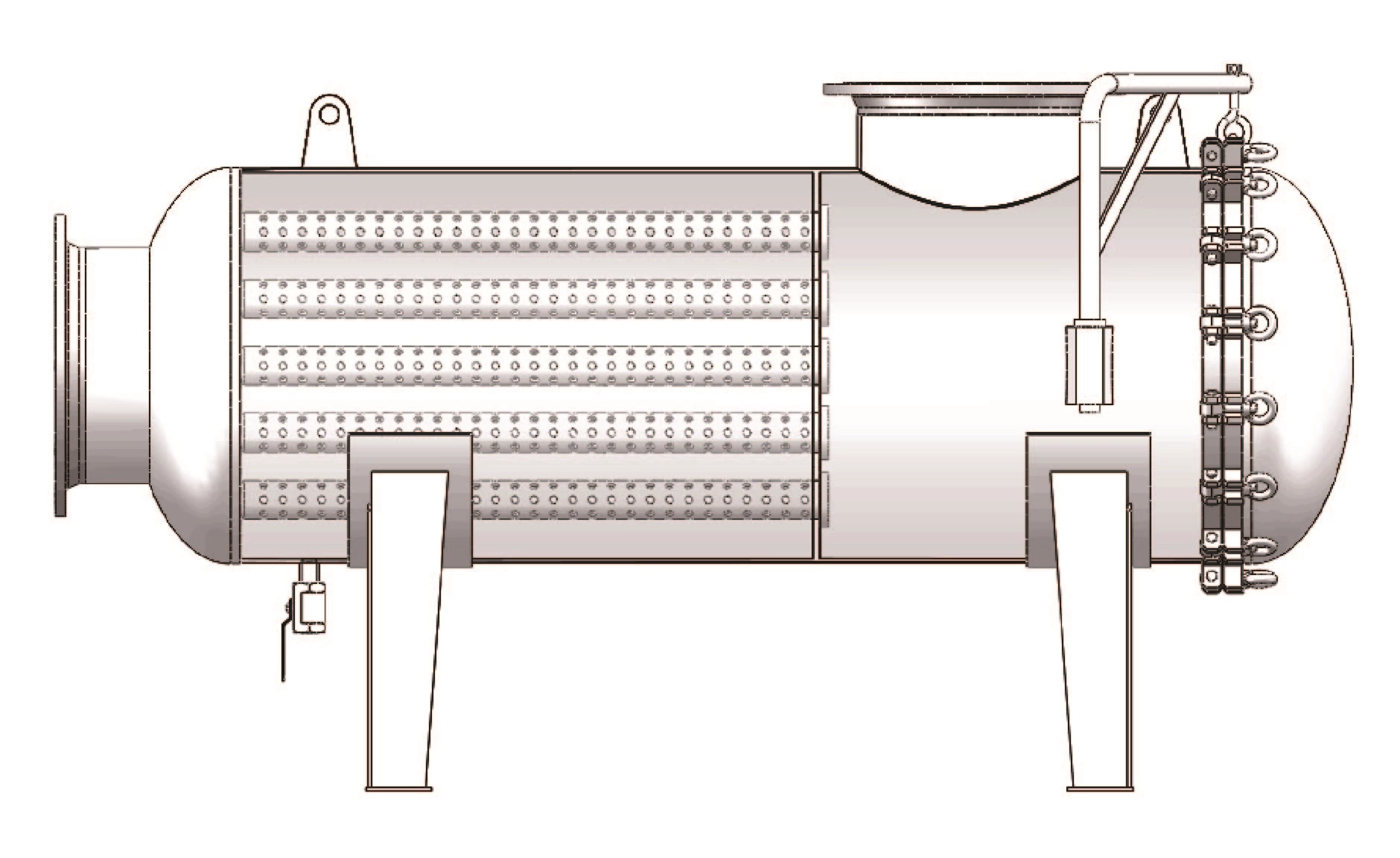

Unite high-flow filters are available in both vertical and horizontalconfigurations.
Standard 10-inch to 40-inch filters typically use avertical design; for medium to large systems with water flow ratesexceeding 1000 tons per hour, a horizontal structure can be chosen,using 60-inch filter cartridges, to accommodate high flow rates whilefacilitating easier replacement and maintenance.
Inlet: The liquid or gas to be filtered enters the filter system through theinlet and begins to flow into the filter element area.
Filtration Process: The fluid passes through the filter element or filtermedium, and larger particles and impurities are retained by the filter.
Multi-Layer Filtration: Some high-flow filters are designed with multiplelayers of filter media, removing particles of different sizes layer by layerto ensure higher filtration accuracy.
Clean Fluid Outlet: The filtered clean fluid flows out through the outletand enters the downstream application or system.
Filter Cake Formation: As filtration progresses, solid particles graduallyaccumulate on the surface of the filter element, leading to increasedfiltration resistance.
Filter Element Replacement or Cleaning: When the accumulation of solidparticles on the filter element reaches a certain level, the filter needs tobe replaced or cleaned to restore its filtration performance.
pre-coated filters are
fully automatic backwashing filters have
