Basket strainers are small devices used to remove small amounts of solidparticles from liquids, protecting compressors, pumps, instruments, andother equipment from damage.
When the fluid enters the filterhousing with a specific mesh size, impurities are blocked, and the cleanfiltrate is discharged from the filter outlet. When cleaning is required,the removable filter basket can be easily removed, cleaned, andreinserted. Therefore, operation and maintenance are extremelyconvenient. Currently, UNITE basket strainers are widely used in thepetroleum, chemical, pharmaceutical, food, and environmentalprotection industries. Installing them in series at the pump inlet or otherparts of the system pipeline can extend the service life of pumps andother equipment while ensuring the safety of the entire system.
Blue filter media with perforations ranging from 1/32” to 1” aresuitable for fine filtration applications and are available with 20 to 400mesh liners.
High-efficiency filtration: Capable of removing solid particles from liquidsor gases, ensuring fluid quality.
Easy operation: The filter element can be easily removed and cleaned,facilitating maintenance and replacement.
High-capacity processing: Suitable for handling large volumes of liquidsor gases, meeting large-scale industrial demands.
Low pressure drop: The pressure loss generated when fluid passesthrough the basket filter is low, reducing energy consumption.

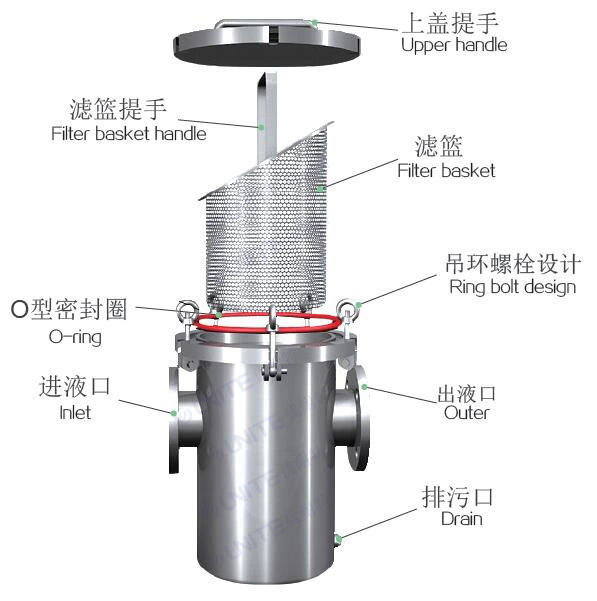

Inlet: The liquid or gas to be filtered enters the basket filter through apipe.
Filtration Process: The fluid passes through the basket filter screen; solidparticles and impurities are retained by the screen, and the clean fluidcontinues to flow out through the screen.
Clean Fluid Outlet: The filtered liquid or gas is discharged through theoutlet and enters the downstream system or application.
Filter Cake Formation: As filtration progresses, solid particles graduallyaccumulate on the filter screen, forming a filter cake.Cleaning: When the accumulation of impurities reaches a certain level,the filter screen can be removed for cleaning or replaced as needed.
pre-coated filters are
fully automatic backwashing filters have
