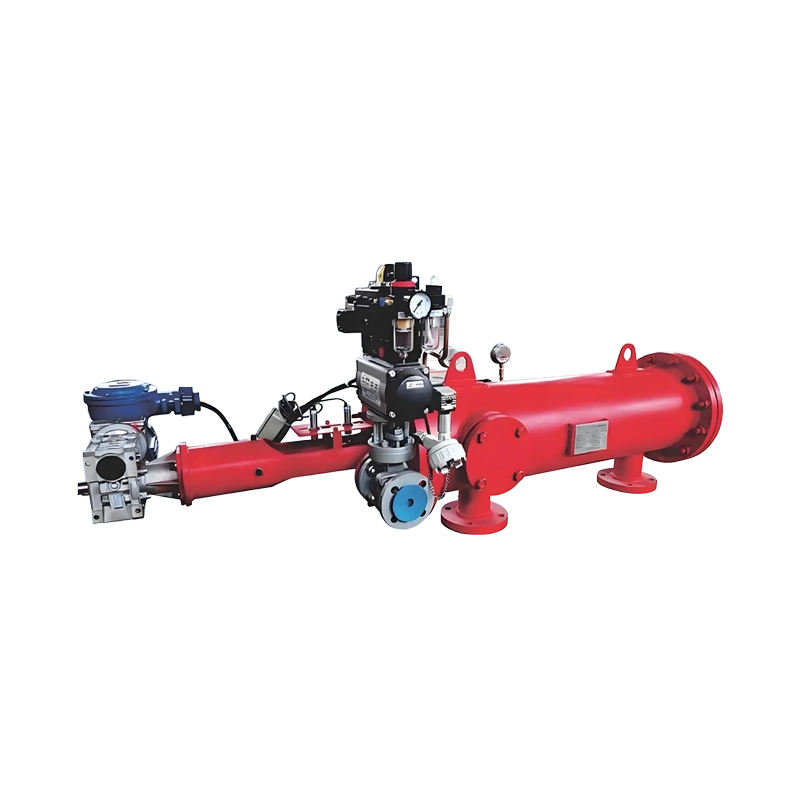

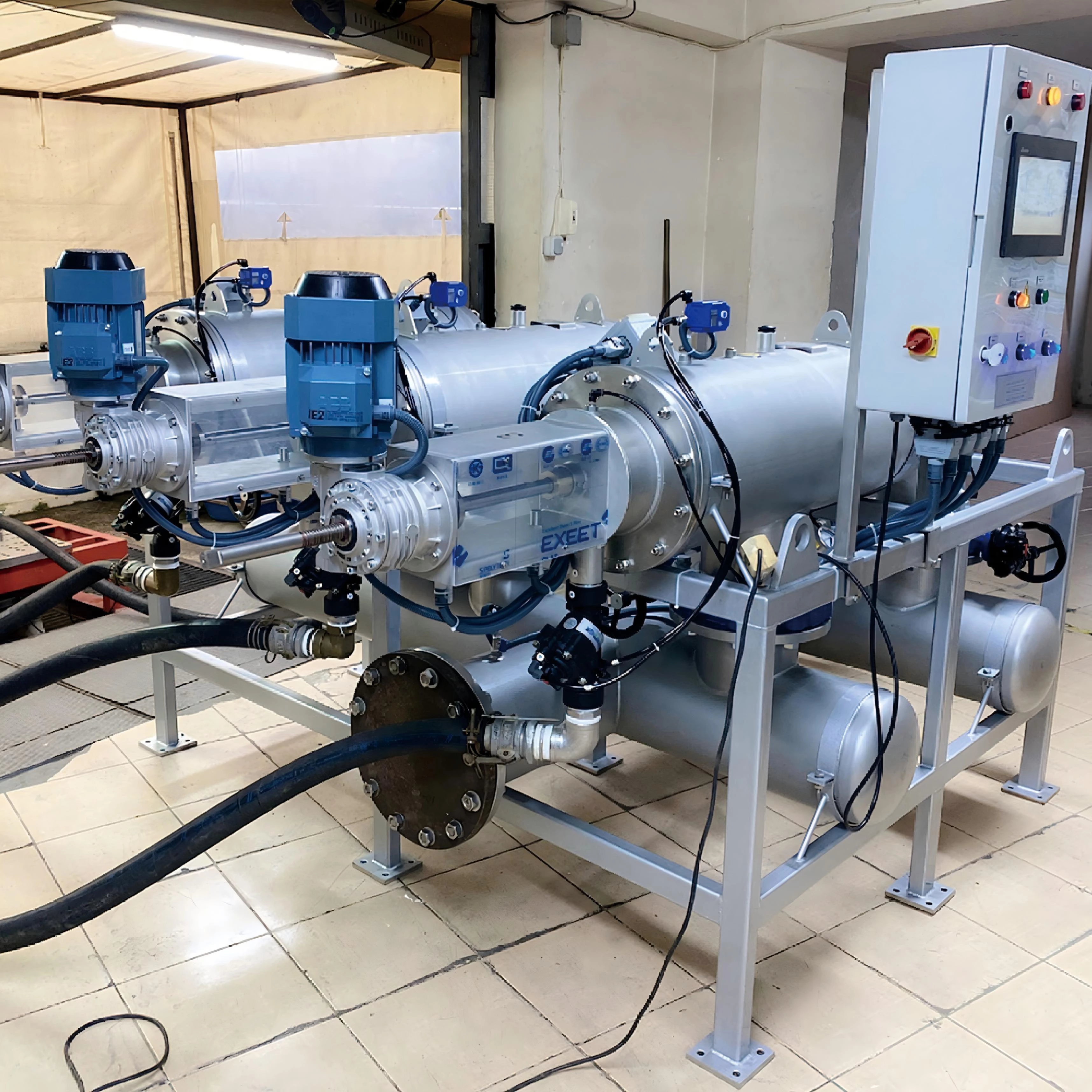

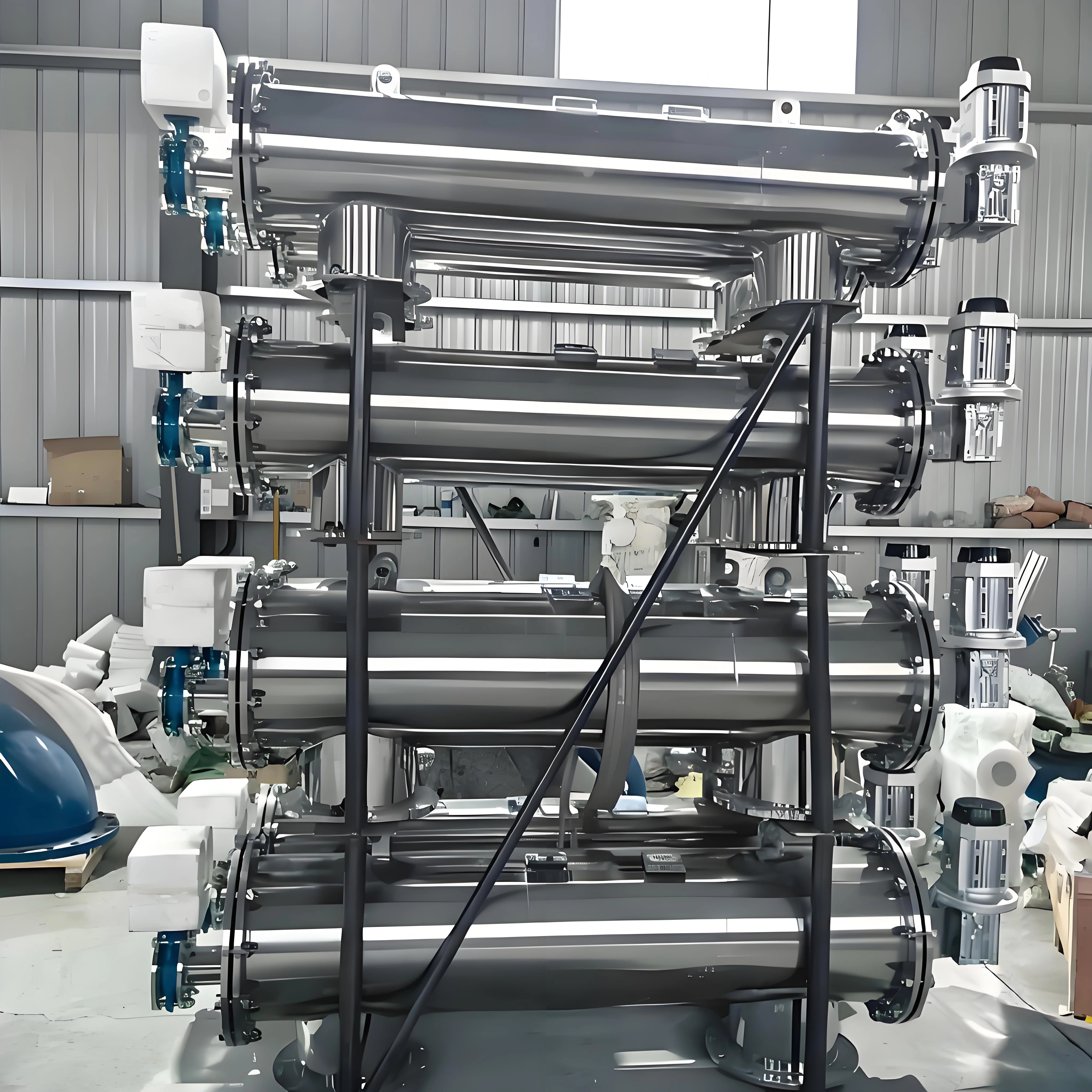

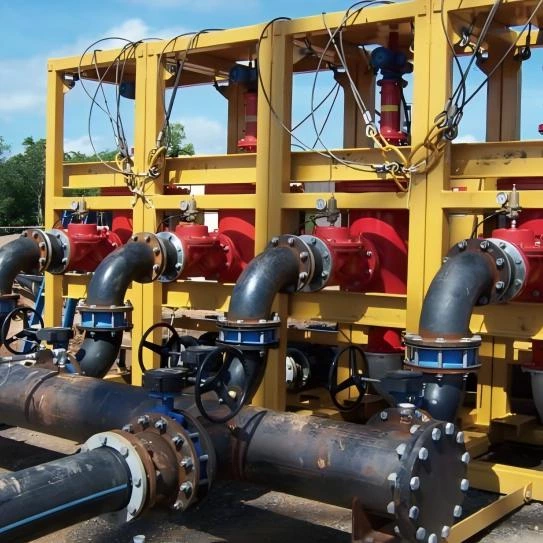

The Automatic Suction-type Filter is a high-efficiency self-cleaning filtration system designed for continuous removal of suspended solids and particulate contaminants from liquid streams. It utilizes a suction scanning cleaning mechanism to automatically remove accumulated impurities from the filter screen without interrupting the filtration process.
UNITE FILTER automatic suction-type filters are widely used in industrial water treatment, cooling water systems, irrigation, municipal water supply, and process filtration applications. The unique suction nozzle design provides efficient cleaning performance with low water consumption and minimal pressure loss.
With fully automatic operation, reliable cleaning performance, and low maintenance requirements, the Automatic Suction-type Filter provides an effective solution for applications requiring continuous filtration and stable system operation.

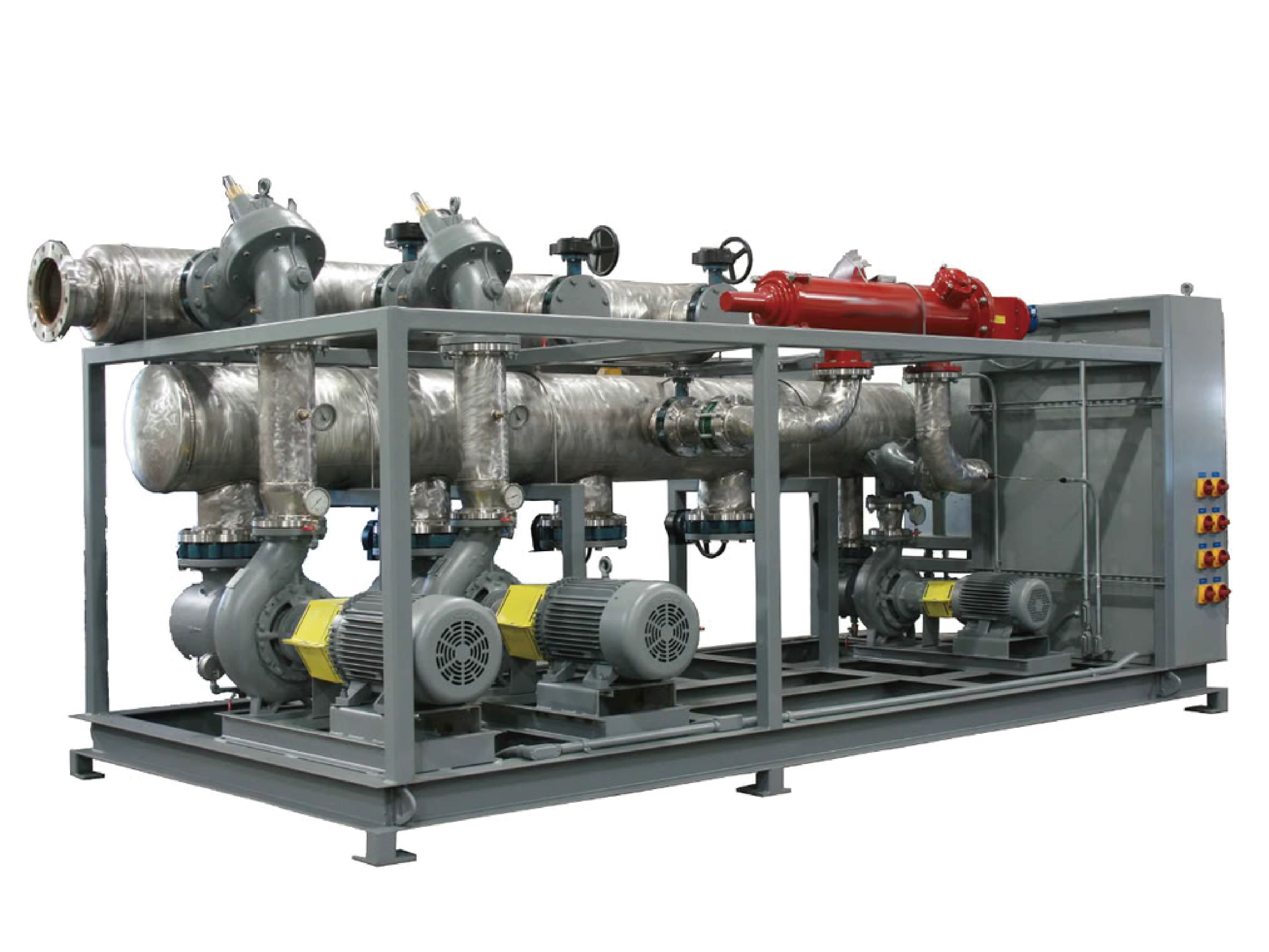

Automatic & Hassle-Free:
Self-Cleaning: The filter cleans it self automatically, no manual intervention needed, saving labor.
Continuous Operation: Cleans while filtering, ensuring uninterrupted production.
Effective Cleaning:
Thorough Cleaning: Unique suction or scraping technology completely removes debris from the filter screen.
Low Water Usage: Uses minimal water for each cleaning cycle, very water-efficient.
Wide Applicability:
Filters All Types of Liquids: Handles various filtration requirements, from coarse to fine.
High Capacity: Can process large volumes of liquid, suitable for large-scale production.
Corrosion Resistant: Available in various materials to suit different liquids.

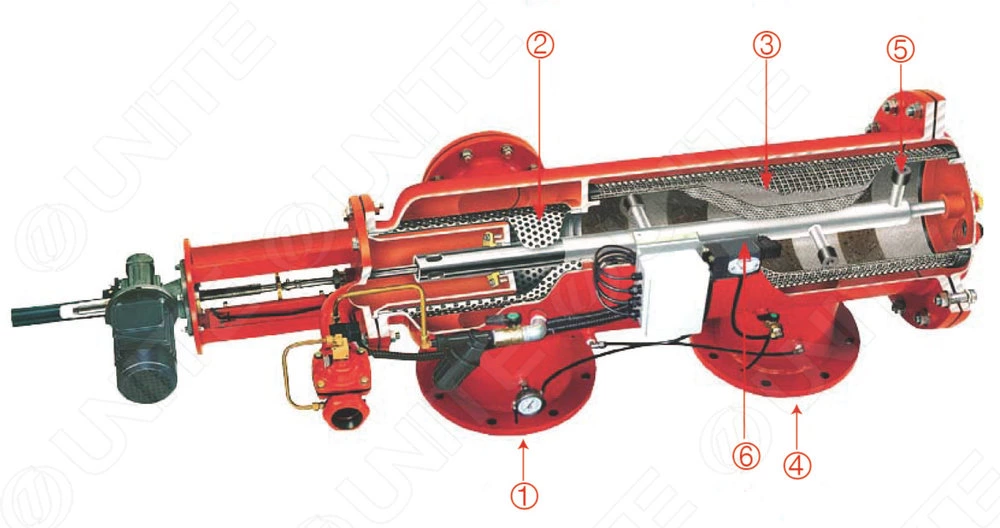

Raw water enters the filter through the inlet (1) and first passes through the coarse filter screen (2), which protects the cleaning mechanism by removing large particles and impurities.
The water then flows through the fine filter screen (3), where suspended solids and contaminants are trapped on the inner surface of the screen. The filtered water exits through the outlet (4). As impurities accumulate and form a filter cake layer, the pressure differential gradually increases. When the differential pressure transmitter detects that the preset value has been reached, the automatic cleaning process is initiated.
During the self-cleaning process, the suction-type scanner (5) moves in a spiral pattern along the filter screen. When the drain valve opens, a high-speed suction flow is generated at the nozzle tip, effectively removing the accumulated filter cake from the screen surface.
The entire cleaning cycle typically takes 20–40 seconds, during which the main filtration process continues without interruption, ensuring continuous downstream water supply.
Fluid enters the filter and solid particles are captured by the filter element.
When preset pressure or time is reached, the system automatically initiates backwashing.
Removed particles are flushed out through the drain outlet.
Differential pressure is continuously monitored to detect filter contamination.
Clean fluid flows in reverse direction to remove trapped contaminants from the filter surface.
The system resumes normal filtration without interrupting operation.
| Model | Approximate Dimensions (in) | Pipe Diameter (in) | Reference Flow | Filtration Area | |||
|---|---|---|---|---|---|---|---|
| A | B | C | Inlet/Outlet | Drain | m³/h | cm² | |
| X1-2 | 10 | 21 | 18 | 2" | 1" | 25 | 3900 |
| X1-3 | 10 | 21 | 18 | 3" | 1" | 50 | 3900 |
| X1-4 | 10 | 25 | 24 | 4" | 1" | 70 | 4900 |
| X1-5 | 10 | 25 | 24 | 5" | 1" | 100 | 4900 |
| X1-6 | 11 | 25 | 24 | 6" | 2" | 150 | 7900 |
| X1-8 | 11 | 25 | 24 | 8" | 2" | 280 | 7900 |
| X1-10 | 13 | 31 | 25 | 10" | 2" | 450 | 11500 |
Talk to Our Engineers to Get a Free, Customized Filtration Solution.
An Automatic Suction-type Filter is a self-cleaning filtration system that removes contaminants from liquids by using a suction scanner or nozzle that travels along the filter element surface to extract and discharge accumulated solids.
During operation, fluid passes through the filter element while solids are retained. When cleaning is triggered by pressure differential or timer, a suction nozzle moves across the filter surface, creating localized reverse flow that removes debris and discharges it from the system.
Key advantages include continuous filtration during cleaning, low water or liquid loss, high cleaning efficiency, suitability for fine particle removal, and reduced maintenance compared to manual filters.
These systems are widely used in water treatment, petrochemical processes, cooling water systems, paper and pulp industry, food and beverage, and industrial process water filtration.
Suction-type filters clean locally using a moving suction nozzle, minimizing process interruption and fluid loss. Backwash filters reverse flow through the entire element, which may consume more fluid during cleaning.
For Jiangxi Salt Chemical’s 55,000 t/y high-strength calcium sulfate project, UNITE supplied multiple large-scale automatic candle filters that integrate solid-liquid separation, displacement washing, pressure dewatering, back-pulse cake release, automatic discharge, and PLC-based process control. The project improved filter-cake washing, supported calcium sulfate quality above the stated industry benchmark, and reduced manual maintenance costs by approximately 60% compared with traditional filtration equipment.
Complete bag filtration solutions for FAW’s painting workshops ensure zero-defect surface quality across pre-treatment and electro coating (ED)processes, significantly reducing rework rates
For a large chemical plant in the Dalian Development Zone, UNITE supplied a modular automatic self-cleaning filtration unit for high-flow circulating cooling-water purification and reuse. The system combines stainless-steel wedge-wire screens, motor-driven suction or brush cleaning, automatic blowdown, differential-pressure and timer triggers, PLC control, touchscreen monitoring, remote communication, and corrosion-resistant construction. The reported result was an extension of heat-exchanger cleaning and maintenance cycles by more than 50%, together with zero manual intervention for automatic blowdown.
