Unite's custom-designed prefabricated pipeline filters feature a uniquedesign to meet any application requirement. Whether customers needspecial alloys, unique pipe connections, cover opening systems, orspecific dimensions,
ISO9001-2008 Quality Management
ASME "U" and "UM" code stamped, "N" stamp available, compliant with
Brazilian NR-13 requirements
European standards - compliant with DIN/PED
Reasonable component size design to meet any specific flow rate andfiltration accuracy requirements

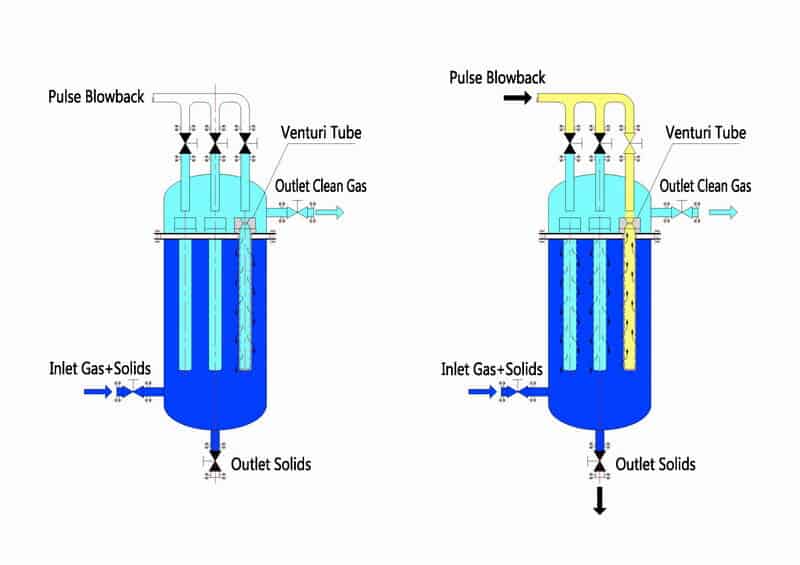

(A) Contaminated gas enters the filter chamber, and through swirling andcollision, heavier rust, scale, and other pipeline particles are separatedfrom the gas stream, thus extending the service life of the filter element.
(B) The gas flows from the outside to the inside through the filterelement, and finer particles are trapped on the surface and in the deeperlayers of the filter element.
(C) Clean gas is obtained at the outlet.
| Perforation Size (inches) | Plate Thickness | Hole Pattern | Open Area (%) |
|---|---|---|---|
| 0.020 | 26 | Straight | 16.0 |
| 1/32 | 26 | Straight | 28.0 |
| 3/64 | 26 | Straight | 30.2 |
| 0.045 | 26 | Staggered | 36.0 |
| 1/16 | 26 | Straight | 31.0 |
| 1/8 | 26 | Staggered | 47.9 |
| 5/32 | 26 | Staggered | 63.0 |
| 1/4 | 26 | Staggered | 42.0 |
| 3/8 | 26 | Staggered | 52.0 |
| 1/2 | 26 | Staggered | 47.9 |
| Screen Hole Size | Wire Diameter (inches) | Open Hole Size (inches) | Open Hole Size (microns) | Open Area (%) |
|---|---|---|---|---|
| 20 | Φ0.016 | 0.0340 | 864 | 46.2 |
| 40 | Φ0.010 | 0.0150 | 381 | 36.0 |
| 60 | Φ0.0075 | 0.0092 | 234 | 30.5 |
| 80 | Φ0.0060 | 0.0065 | 165 | 27.0 |
| 100 | Φ0.0045 | 0.0055 | 140 | 30.3 |
| 200 | Φ0.0021 | 0.0029 | 74 | 33.6 |
| 325 | Φ0.0014 | 0.0017 | 43 | 30.0 |
| 400 | Φ0.0015 | 0.0381 | 38 | 36.0 |
| Maximum working pressure |
17.6 bar |
| Maximum working temperature | 60℃ |
| Service | Natural gas, town gas, non-corrosive gases |
| Collection capacity | Over 12% of total filtration capacity, with bottom drain capability |
| Flange | ANSI150 RF, PN16 UNI/DIN |
| Connection | In-line type |
| Piping Materials | ASTM A 106 Gr B |
| Flanges Materials | ASTM A 105 |
| Fittings |
|
This duplex system ensures continuous water flow via a twin-barrel design, effectively preventing nozzle and equipment clogging caused by high-impurity mine water in both underground and surface operations.
Addressing high-pressure natural gas purification, this integrated systemcombines particulate filtration with coalescing separation to ensure the safeoperation of long-distance pipelines in extreme climates.
