The High-flow Filter is a high-capacity filtration system designed for applications requiring large flow rates, high filtration efficiency, and long service life. Compared with conventional filtration systems, it uses a larger filtration area and optimized flow channel design to reduce pressure loss and improve overall filtration performance.
UNITE FILTER high-flow filters are equipped with high-performance filter elements that provide excellent dirt-holding capacity and efficient removal of suspended solids, particles, and contaminants from liquid streams. The compact design allows high flow capacity with reduced installation space and simplified maintenance.
With reliable operation, low pressure drop, and flexible configuration options, the High-flow Filter is widely used in water treatment, power generation, petrochemical, chemical processing, industrial process water, and other large-scale filtration applications.

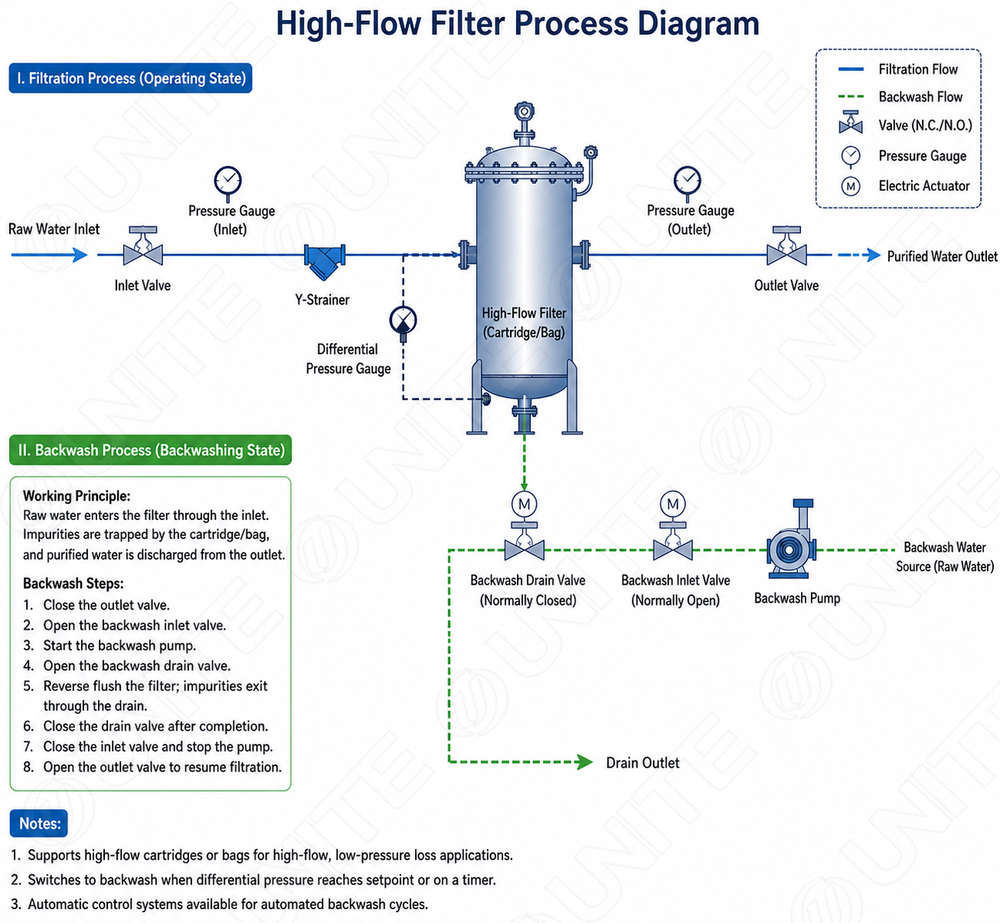

During filtration, the fluid enters the filter housing and flows through the high-flow filter elements. Contaminants are intercepted by the filter media, while clean liquid passes through the elements and exits through the outlet.
The large-diameter filter elements provide a higher filtration area and lower flow resistance, allowing the system to handle large flow rates while maintaining stable filtration performance. When the pressure differential reaches the recommended value, the filter elements can be cleaned or replaced to restore filtration efficiency.
Fluid Inlet
The liquid or gas to be filtered enters the filtration system through the inlet and flows into the filter element area.
Filtration Process
The fluid passes through the filter element or filtration media, where larger particles and contaminants are intercepted and retained.
Multi-layer Filtration
Some high-flow filters adopt a multi-layer filtration structure, allowing particles of different sizes to be removed layer by layer and improving overall filtration accuracy.
Clean Fluid Outlet
The purified fluid passes through the filter element and exits through the outlet, flowing into the downstream process or application system.
Filter Cake Formation
During continuous filtration, solid particles gradually accumulate on the surface of the filter element, forming a filter cake layer and increasing filtration resistance.
Filter Element Cleaning or Replacement
When the pressure differential reaches the recommended level due to contaminant accumulation, the filter element can be cleaned or replaced to restore filtration performance and ensure stable operation.
Talk to Our Engineers to Get a Free, Customized Filtration Solution.
A High-flow Filter is an industrial filtration system designed to handle large volumes of liquid with a single filter element. It is commonly used where high flow rates, compact design, and efficient filtration are required.
Liquid enters the filter housing and passes through a large-diameter, pleated filter element. The design increases filtration surface area, allowing high flow rates with low pressure drop while effectively removing particles.
Key advantages include high flow capacity per element, reduced number of filter elements required, compact system footprint, lower labor costs for replacement, and improved filtration efficiency.
High-flow filters are widely used in power generation, petrochemical industry, water treatment, desalination systems, food and beverage, and industrial process filtration systems.
High-flow filters can handle significantly higher flow rates with fewer elements and lower maintenance frequency, while standard cartridge filters are better suited for lower flow applications requiring higher precision in smaller systems.
Complete bag filtration solutions for FAW’s painting workshops ensure zero-defect surface quality across pre-treatment and electro coating (ED)processes, significantly reducing rework rates
To improve the safety and reliability of aviation-fuel transfer at an engine-testing base, UNITE developed a customized fuel purification system for the Aviation Industry Corporation of China (AVIC). The integrated solution combines two-stage coalescing separation, high-precision particulate filtration, explosion-proof monitoring, automatic drainage, online water-quality monitoring, and a polished SS316L flow path. It was designed to remove free and emulsified water as well as fine particulate contaminants from aviation fuel such as RP-3, helping protect precision aero-engine fuel systems and maintain stable testing conditions.
CIMC Raffles selected UNITE’s customized hydrocyclone desanding systems for multiple deep-water jack-up and semi-submersible drilling-rig projects. Designed for mud-circulation and seawater-treatment applications, the systems remove hard sand particles from seabed-derived fluids before they can damage high-pressure mud pumps, submersible pumps, and valve seals. The solution combines wear-resistant cyclone liners, SS316L or duplex stainless-steel vessels, compact skid-mounted integration, automated sand discharge, and offshore-oriented monitoring and control.
