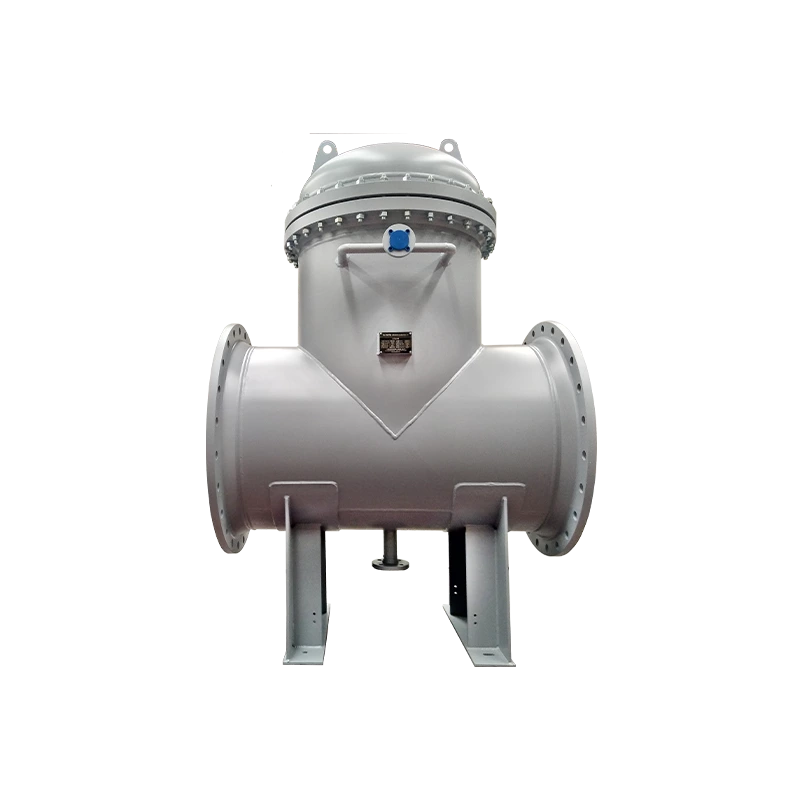

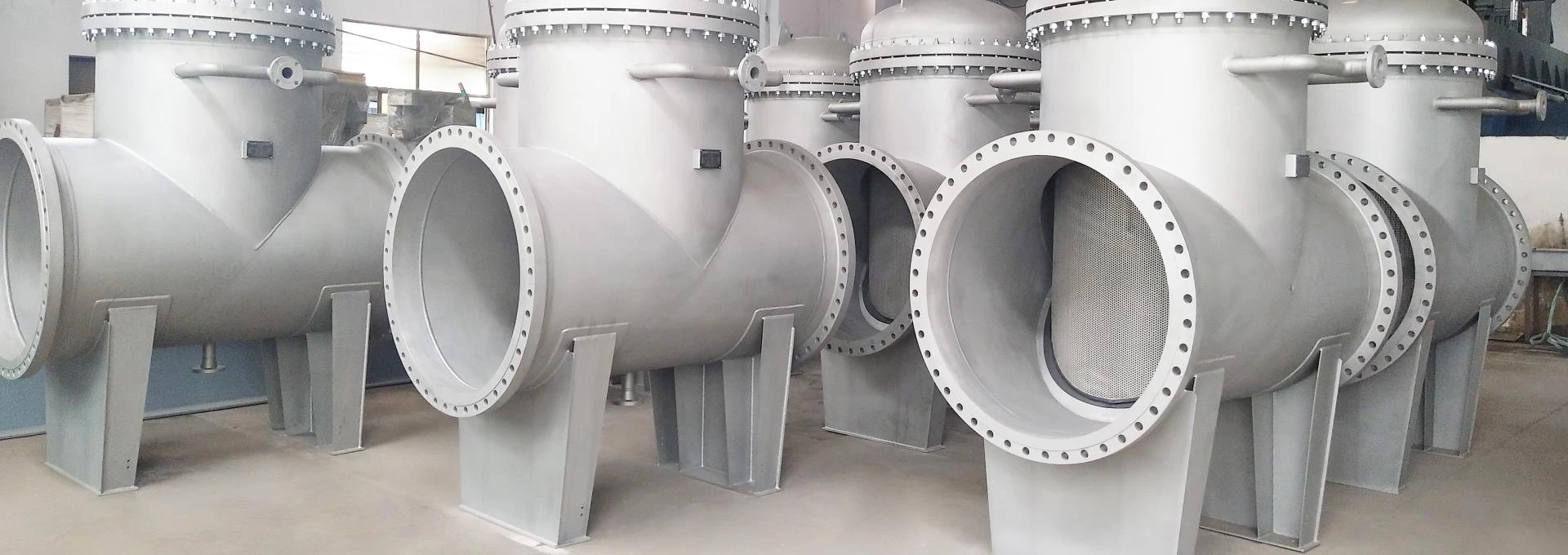

Pipe filters are divided into Y-type pipe filters and T-type pipe filters.
The Y filter mechanically removes unwanted solid particles from liquid,gas, or steam pipelines using a perforated or wire mesh filter element,thereby protecting downstream process system components.
T-type filters are commonly used to protect pumps or in otherapplications with low solid particle content, and offer several advantagescompared to other pipeline filter designs. Their compact design makes
them ideal for applications with limited space, and they can be installedvertically or horizontally. Furthermore, the container does not need tobe drained when cleaning the filter. They are also suitable forstraight-through or right-angle flow applications and are ideal forretrofitting existing systems.

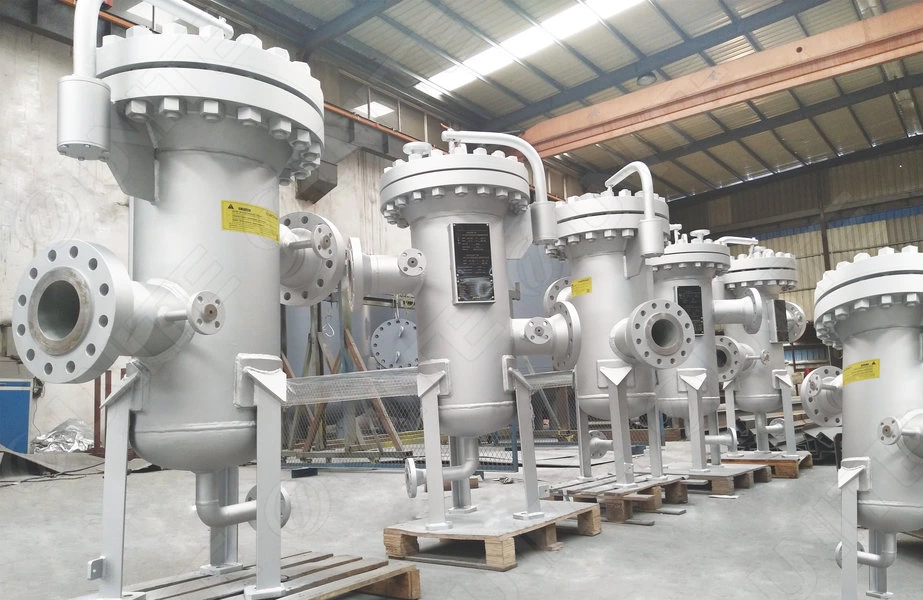

Equipment Protection: Acting like a "bodyguard," it intercepts impurities, extending the lifespan of your pumps, valves, and other equipment.
Easy Maintenance, Cost-Saving: With a simple structure, the filter screen can be easily removed and cleaned for reuse—eliminating the need for frequent, costly replacements.
Highly Reliable: Free of complex components, it is robust and highly resistant to mechanical failure.
Compact and Versatile: It mounts directly onto pipelines without taking up extra space, making it suitable for use in virtually any location.
Cleaner Fluid: It effectively removes large particulate matter and debris, ensuring a cleaner and purer fluid flow.

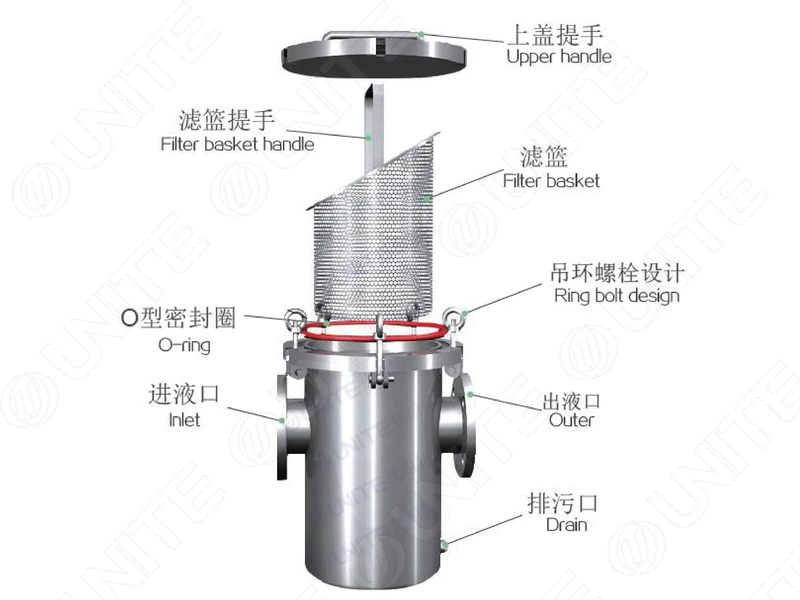

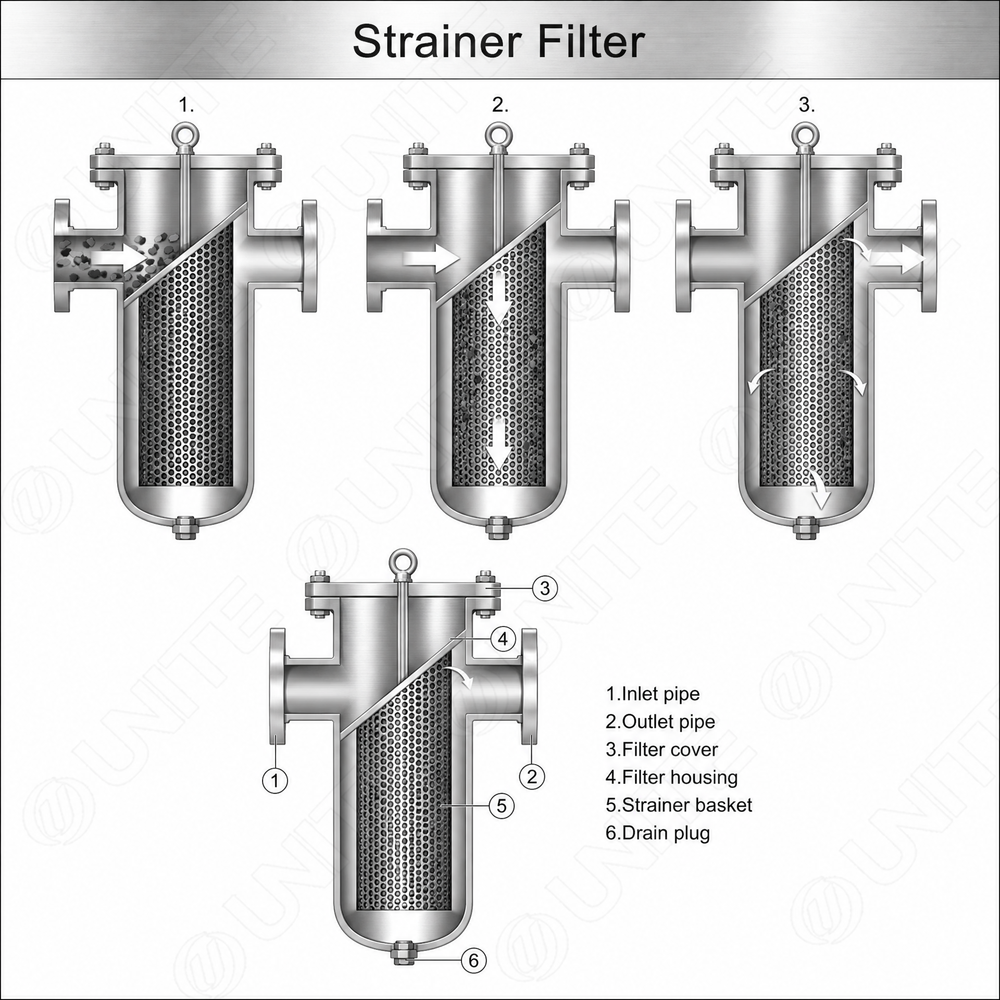

Inlet: The liquid or gas to be filtered enters the filter through the pipeinlet.
Primary Filtration: The fluid passes through the filter medium (such as amesh screen, filter cartridge, etc.), and large particles of impurities areintercepted on the surface of the filter screen or inside the filtercartridge.
Filtration Process: Fine solid particles or impurities continue to be
filtered and gradually removed, ensuring the purity of the fluid.
Clean Fluid Outlet: The filtered clean liquid or gas is discharged throughthe outlet and enters the downstream system or application.
Filter Cake Formation & Backwash: As filtration progresses, moreimpurities accumulate on the surface of the filter screen or filtercartridge, increasing filtration resistance. Regular backwashing orreplacement of the filter cartridge can restore the filtration effect.
Maintenance & Replacement: When the filter's filtration efficiencydecreases or the filter cartridge accumulates a large amount of dirt,cleaning or replacement is required

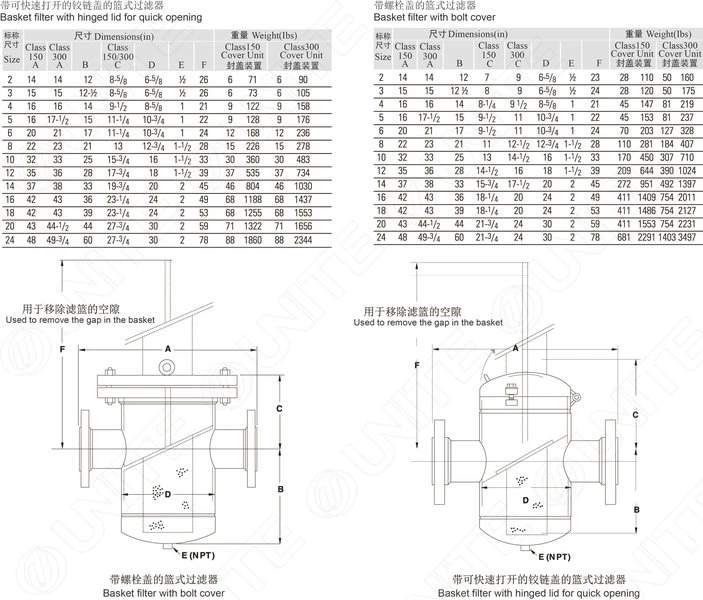

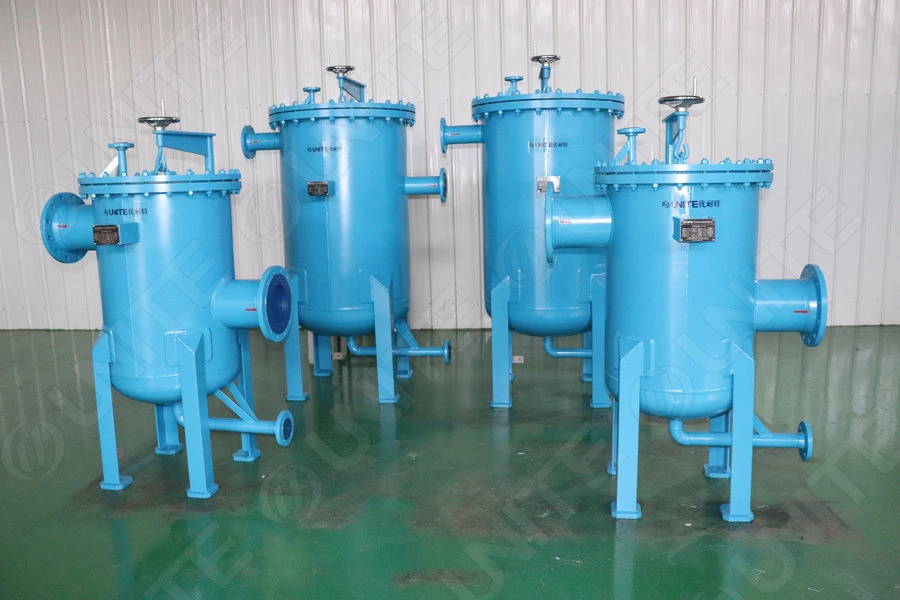

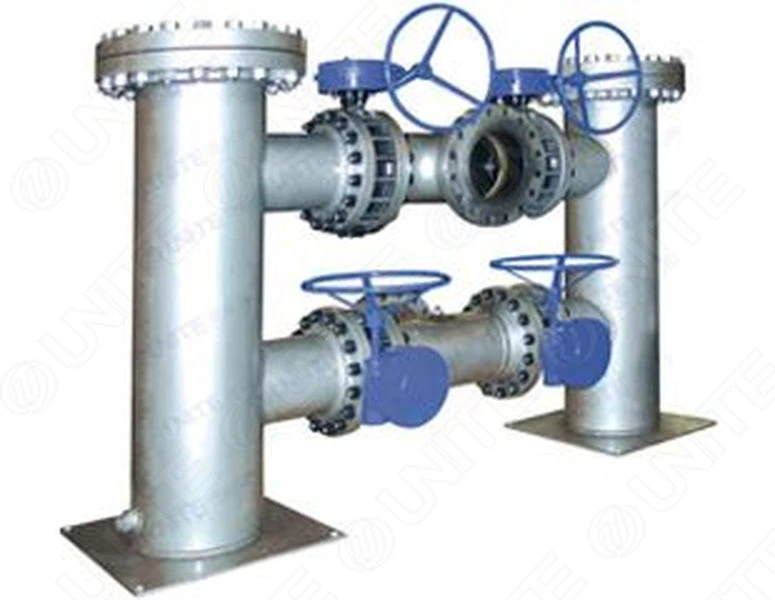

A Pipeline Filter is an inline filtration device installed directly in a pipeline to remove solid particles and contaminants from liquids or gases, protecting downstream equipment such as pumps, valves, and instruments.
Fluid flows through the pipeline filter housing where a filter element (such as mesh, basket, or cartridge) traps impurities. Clean fluid continues through the pipeline while solids are retained for periodic cleaning or replacement.
Key advantages include compact inline design, easy installation, protection of downstream equipment, low pressure drop, and suitability for continuous industrial operation.
Pipeline filters are widely used in petrochemical, chemical processing, water treatment, power generation, food and beverage, and HVAC systems where fluid cleanliness is critical.
Pipeline filters are installed directly in pipelines for inline protection and can include different elements (basket, mesh, cartridge), while bag filters use replaceable filter bags and are typically used for batch or vessel-based filtration.

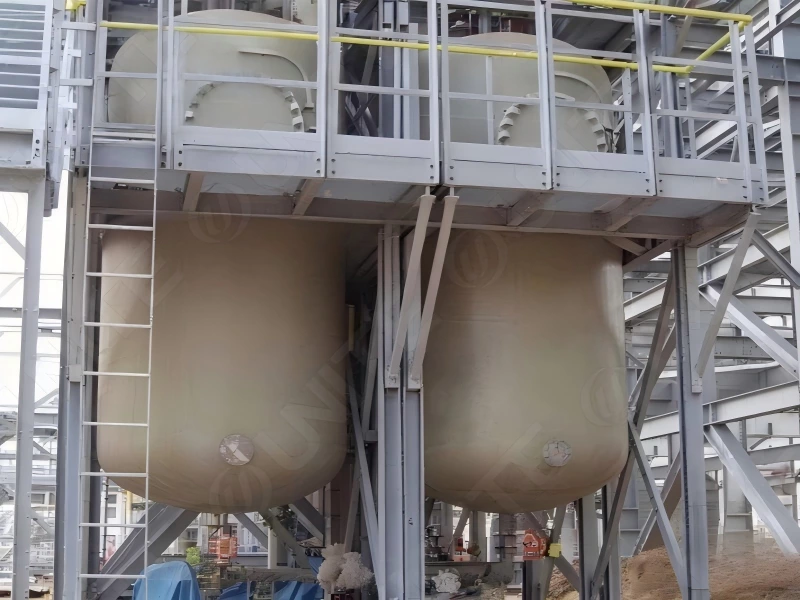

Automated seawater pre-filtration for GNPower Mariveles (Philippines), providing robust protection against tropical marine fouling and sediment for high-capacity power generation.

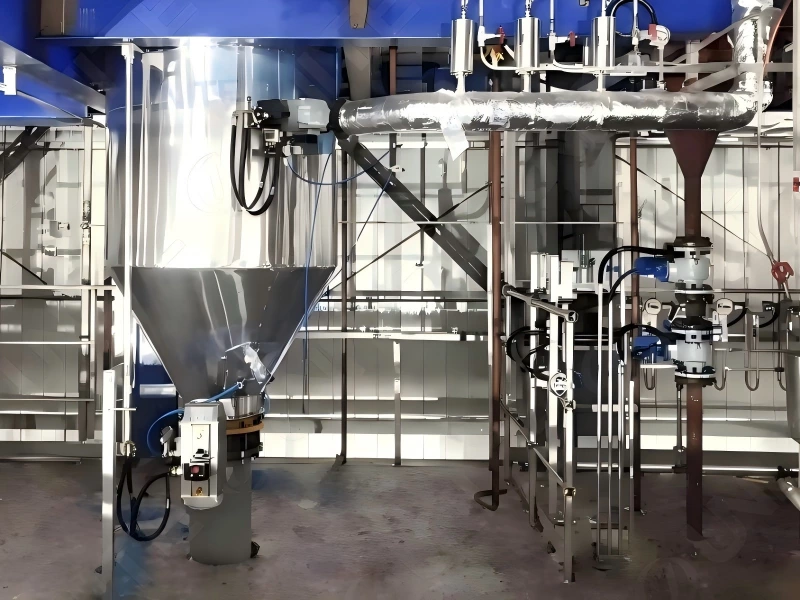

Supporting Phase II of Dongfang Electric’s clean energy project, thisheat-resistant system ensures ultra-low dust emissions to protect criticaldownstream heat recovery equipment.

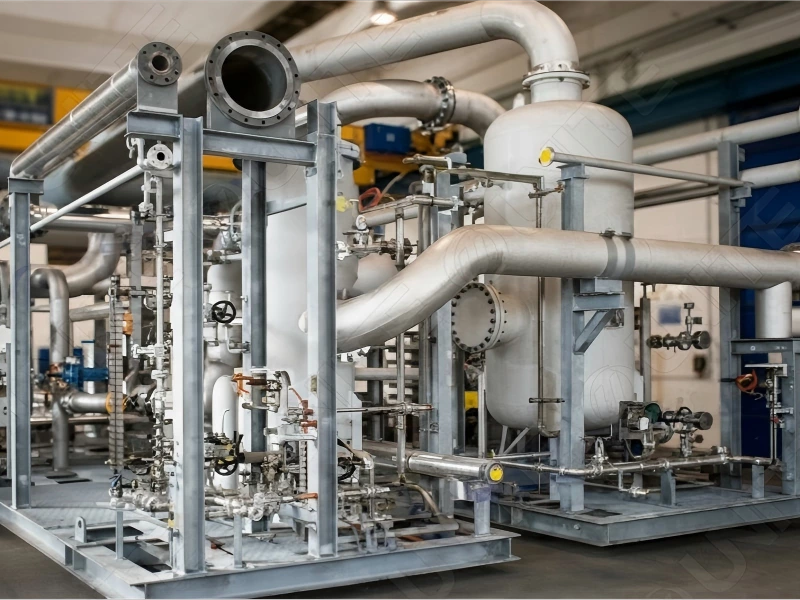

Addressing high-pressure natural gas purification, this integrated systemcombines particulate filtration with coalescing separation to ensure the safeoperation of long-distance pipelines in extreme climates.
