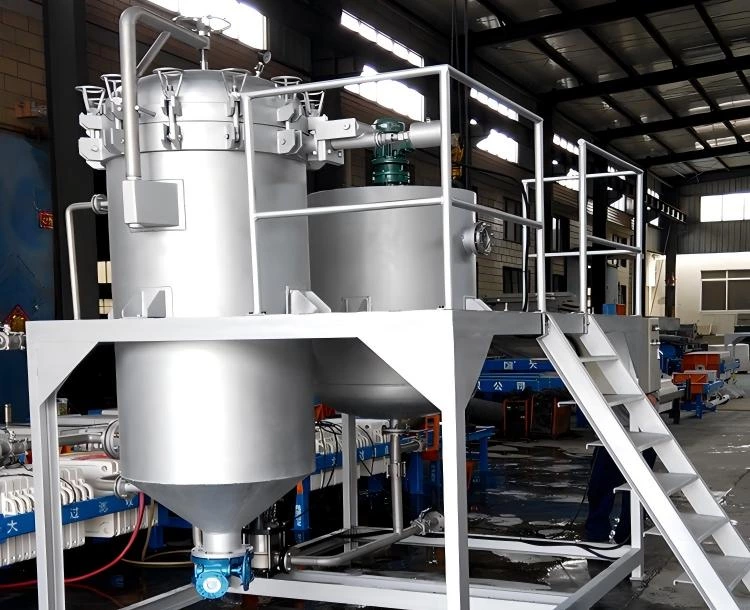

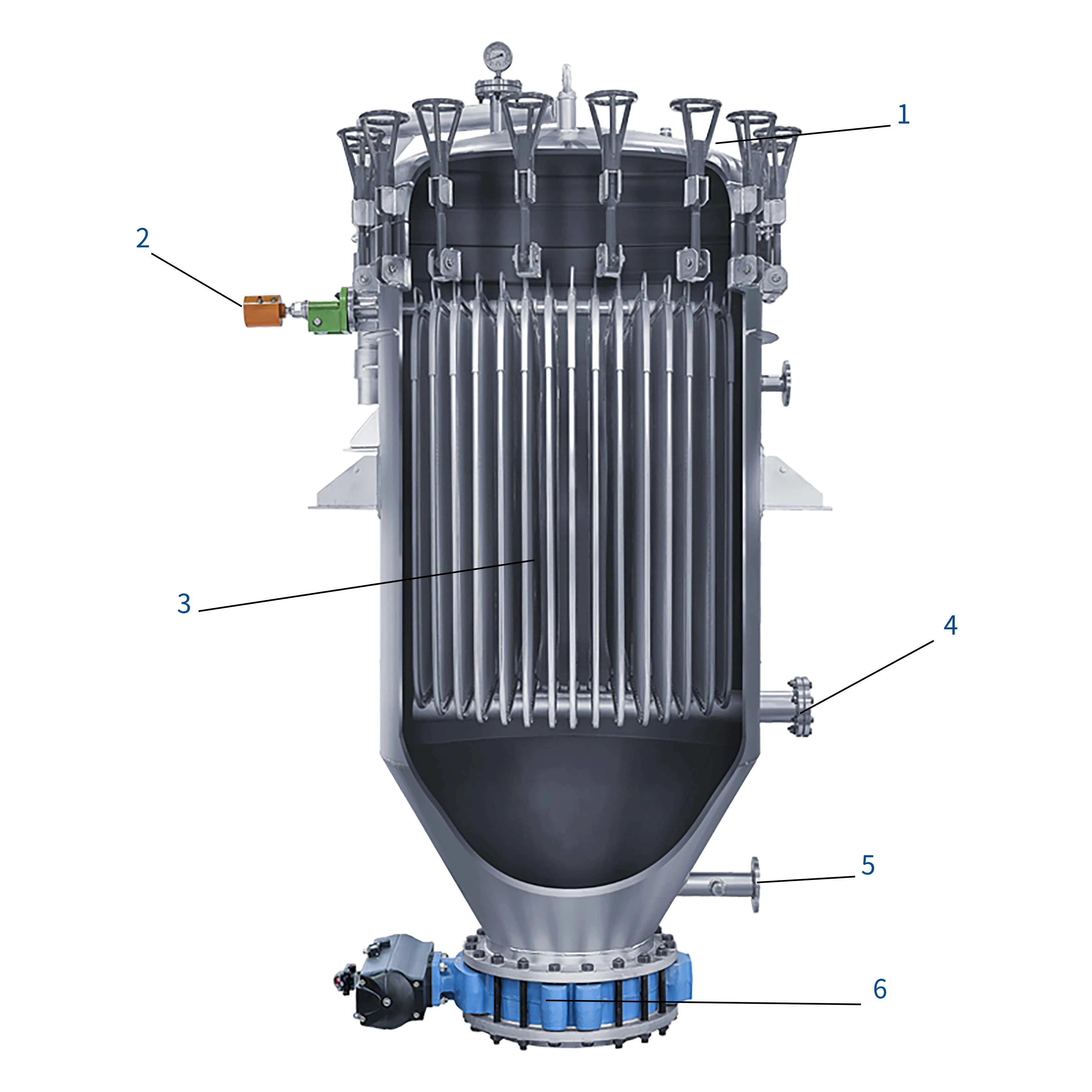

The CLV type enclosed plate filter is an ideal choice for batch processingapplications requiring high flow rates and a small footprint. Therefore, itis suitable for situations where space is limited or where interruptions inproduction are anticipated. In addition, we also offer horizontal pressureleaf filters to meet diverse industrial needs. The filter does not requirefilter cloth; the filter plates are made of 5 layers of stainless steel wiremesh, ensuring a long service life and low maintenance costs; the fullyenclosed structure and fully automated operation reduce environmentalpollution and labor costs; various filter aids can be added; the filtrationarea ranges from 3 m² to 125 m²; the filter can operate in both dry andwet cake discharge modes to meet the needs of different industrialproduction processes; it is suitable for batch processing applicationsrequiring high flow rates and small solid removal within a small footprint.
Prior to filtration, pre-coating is carried out. The pre-coating tank, which contains filtrate and filter aids such as diatomaceous earth and perlite, is stirred for about 10 minutes. Subsequently, the vessel is filled with the mixture, all air is removed (evacuated), and the vessel is pressurized. The pre-coating process runs for 15 minutes at a fluid flow rate of approximately 30 - 60 gallons per hour per square foot.
The filter cake is dried as necessary. If a dry filter cake is required, it is typically dried using compressed air, inert gas, or steam before discharge.
After pre-coating, the slurry is forced through the vessel under pressure. Solid particles are retained either in the pre-coat layer or within the filter medium, while the clarified liquid flows out of the filter via the manifold.
After drying, the filter cake is discharged by a pneumatic vibrator through a butterfly valve located at the bottom of the filter. For wet cakes, discharge can be achieved using either a pneumatic vibrator or nozzles.
| Model | Filtration Area (m2) | Treatment Capacity (T/h) | Working Pressure (Mpa) | Filter Machine Volume (L) | Weight (kg) | Outline dimension L x W x H (mm) | |||
|---|---|---|---|---|---|---|---|---|---|
| Food | Petrochemistry | Oil | Rated pressure | Max pressure | |||||
| U-BS-M-5 | 5 | 2-3 | 2-5 | 1-1.2 | 0.1-0.4 | 0.5 | 600 | 2100 | 1850*1650*2000 |
| U-BS-M-7 | 7 | 4-6 | 5-7 | 1.4-2 | 780 | 2500 | 1850*1650*2050 | ||
| U-BS-M-10 | 10 | 6-8 | 7-9 | 2-3 | 1200 | 2800 | 1900*1850*2450 | ||
| U-BS-M-15 | 15 | 9-12 | 11-13 | 3-5 | 2000 | 3800 | 2000*1950*2800 | ||
| U-BS-M-20 | 20 | 12-16 | 15-17 | 5-7 | 2200 | 4200 | 2300*2250*3250 | ||
| U-BS-M-25 | 25 | 15-20 | 19-21 | 7-9 | 2500 | 4500 | 2300*2250*3500 | ||
| U-BS-M-30 | 30 | 18-24 | 23-25 | 9-11 | 4700 | 5800 | 2300*2250*3600 | ||
| U-BS-M-35 | 35 | 21-27 | 27-29 | 11-13 | 4900 | 6500 | 2600*2500*3800 | ||
