In gas pressure reduction and metering systems, it is good practice toprotect pressure regulators, valves, positive displacement meters, etc.,from solid particles present in the gas.Filters are used for this purpose.
They are manufactured in different types and sizes to meet the needs ofall applications. They are equipped with nuts for assembling multiplefittings, facilitating operation. The filters have a robust construction andare easy to install and maintain.
The filter element is capable of filtering out solid particles down to 5microns.
The Natural Gas Filter provides efficient removal of particulates andmoisture, ensuring clean and reliable gas flow. With high filtrationprecision, it performs consistently in critical gas filtration applications. Itsdurable construction makes it ideal for long-term use in harshenvironments, while the low pressure drop ensures minimal energyconsumption. The filter is easy to maintain with simple elementreplacement and cleaning, making it a versatile solution for the naturalgas, oil & gas, and chemical industries.

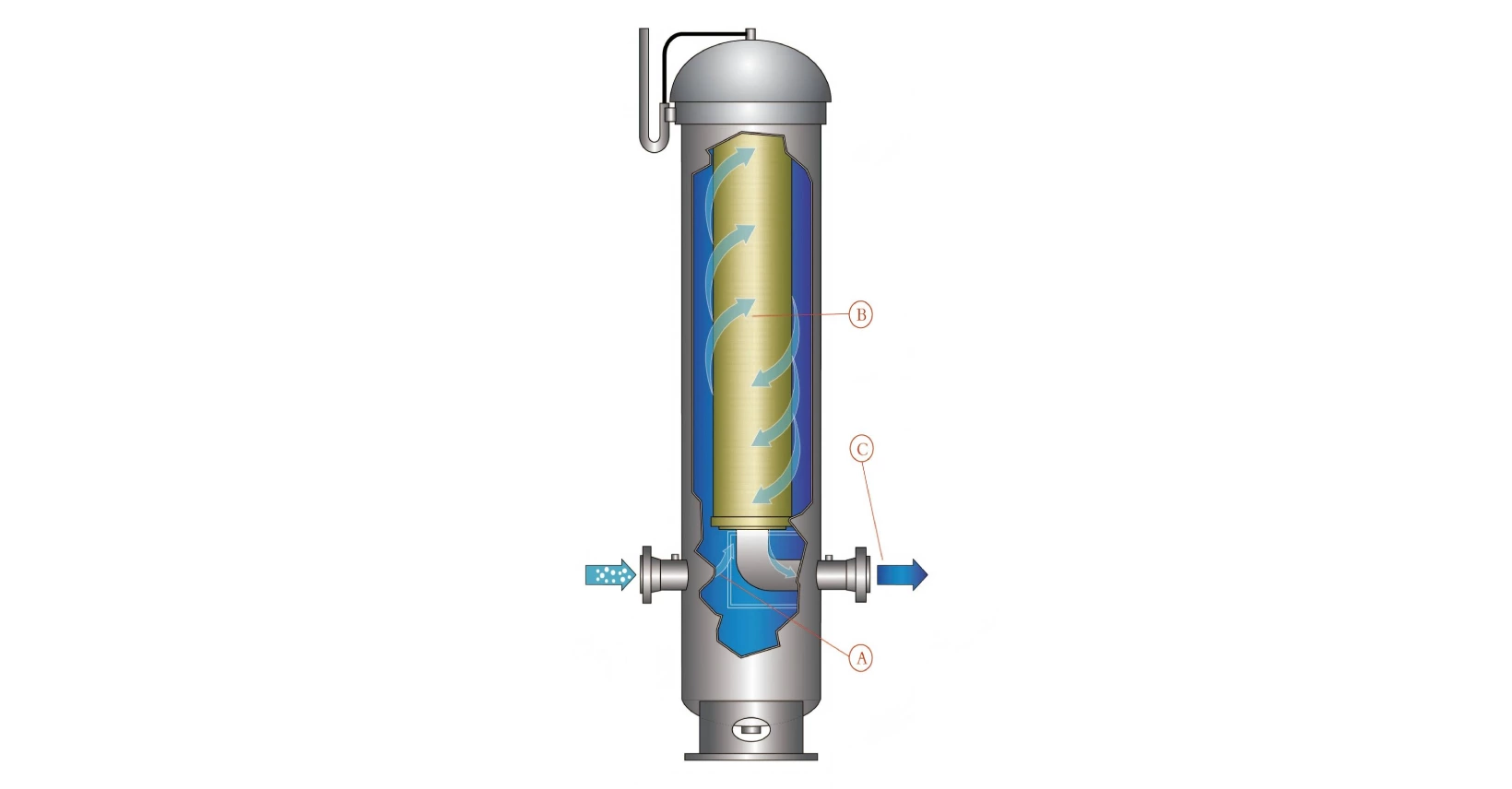

(A) Contaminated gas enters the filter chamber, and through swirling andcollision, heavier rust, scale, and other pipeline particles are separatedfrom the gas stream, thus extending the service life of the filter element.
(B) The gas flows from the outside to the inside through the filterelement, and finer particles are trapped on the surface and in the deeperlayers of the filter element.
(C) Clean gas is obtained at the outlet.

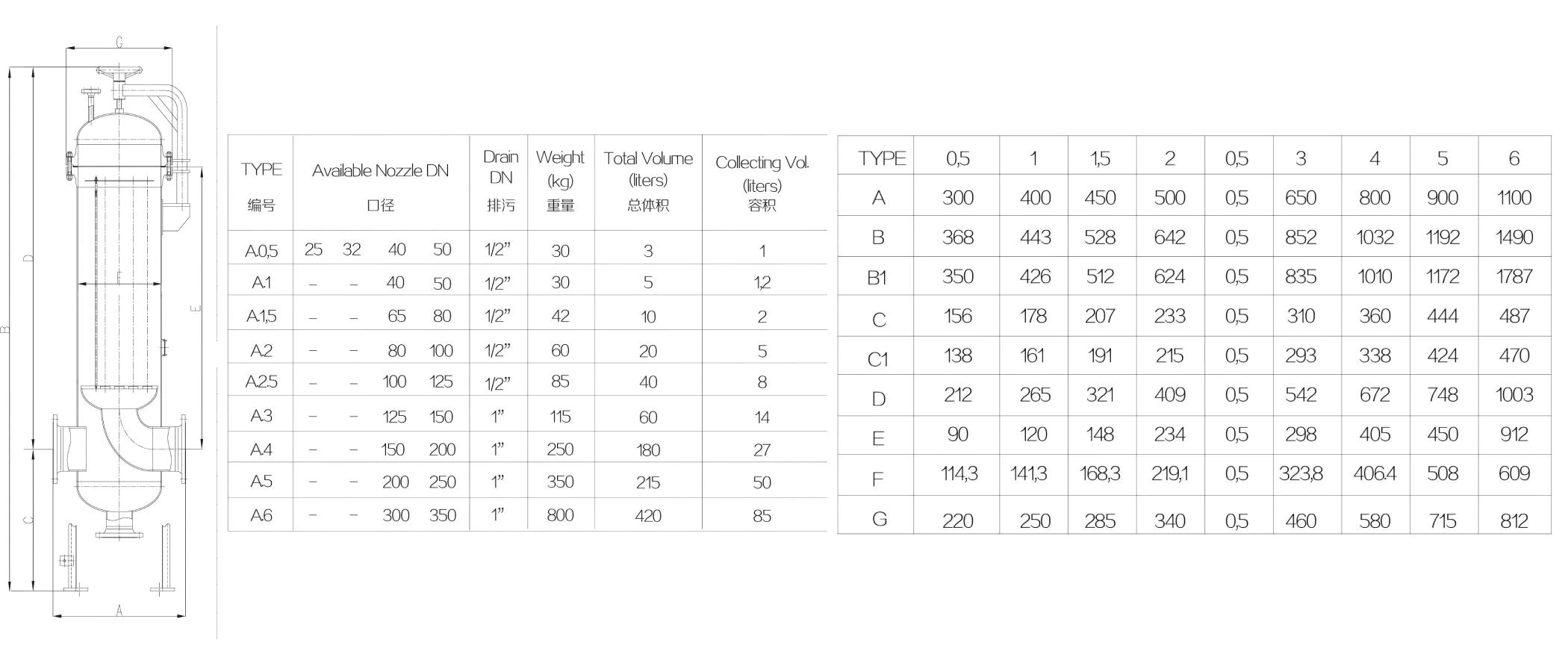

| Maximum working pressure | 17.6 bar |
| Maximum working temperature | 60℃ |
| Service | Natural gas, town gas, non-corrosive gases |
| Collection capacity | Over 12% of total filtration capacity, with bottom drain capability |
| Flange | ANSI150 RF, PN16 UNI/DIN |
| Connection | In-line type |
| Piping Materials | ASTM A 106 Gr B |
| Flanges Materials | ASTM A 105 |
| Fittings |
|
