ENERGY-EFFICIENT OPERATION, LOW POWER CONSUMPTION

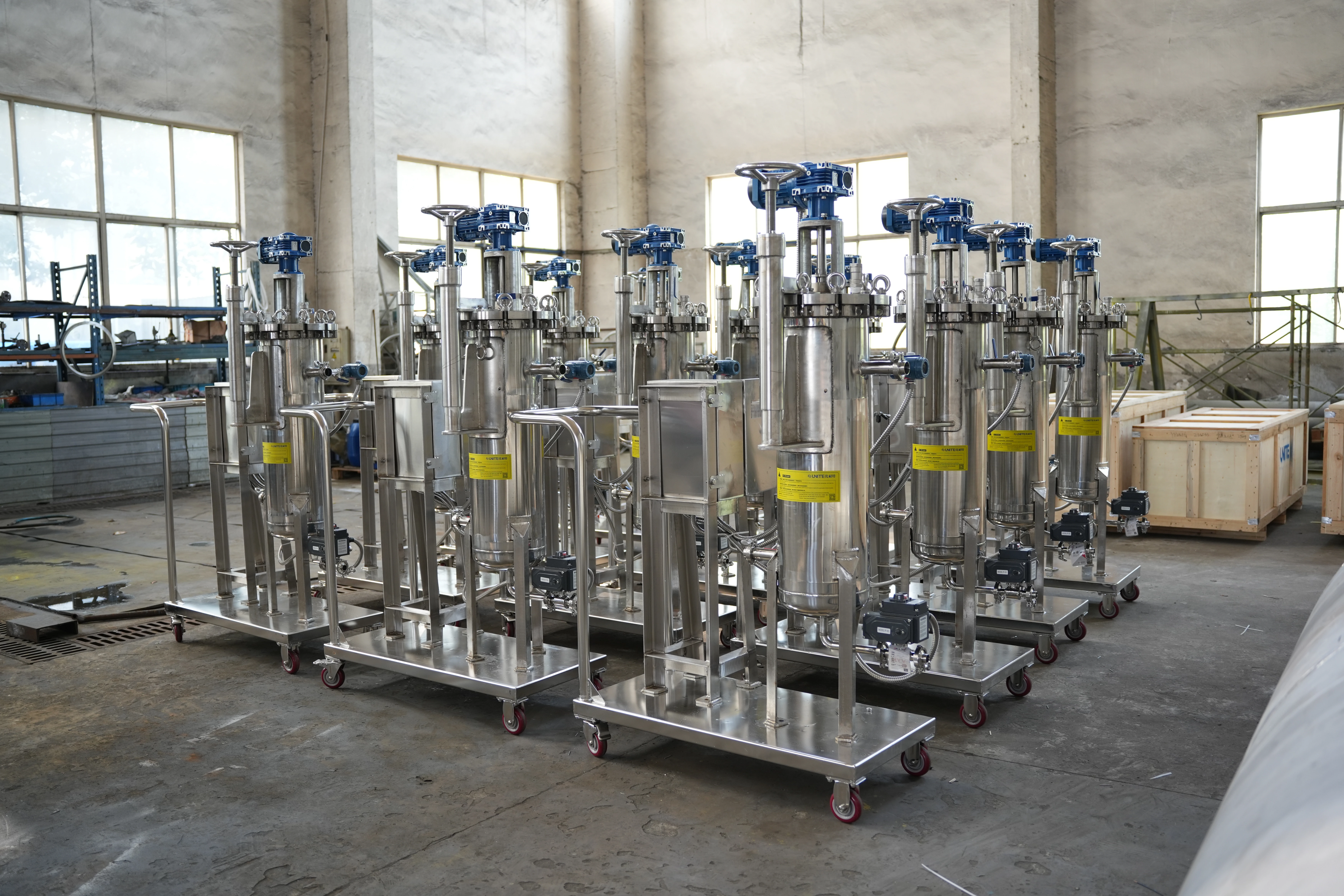

The Unite U-ZC-G2 series scraper filter is not only used for water filtration, but is also widely applicable to the self-cleaning filtration of viscous materials such as solvents, acids and alkalis, polymers, and coatings. It offers higher efficiency and a filtration range of 25-2500 microns, and can handle liquids with viscosities up to 5,800,000 centipoise. The Unite U-ZC-G2 series scraper filter is widely used in water treatment, petrochemicals, metallurgy, power generation, fine chemicals, coatings, inks, paper manufacturing, food and beverages, pharmaceuticals, metal processing, and other industries.
1. Fully automatic operation, 24-hour continuous online filtration, eliminating the laborious work of filter element replacement and cleaning;
2. Utilizes metal or PTFE scraper blades for excellent scraping effect, significantly improving impurity removal and preventing the crushing of impurities;
3. Backwashing function can be added to assist in cleaning the filter element;
4. Small footprint, saving on consumables and environmental treatment costs;
5. Low filtration pressure drop and stable flow rate, facilitating continuous and stable process operation;
6. Closed filtration prevents leakage of hazardous materials, contributing to safe production and employee health;
7. High concentration of discharged waste impurities, which can be recycled, reducing the loss of high-value materials;

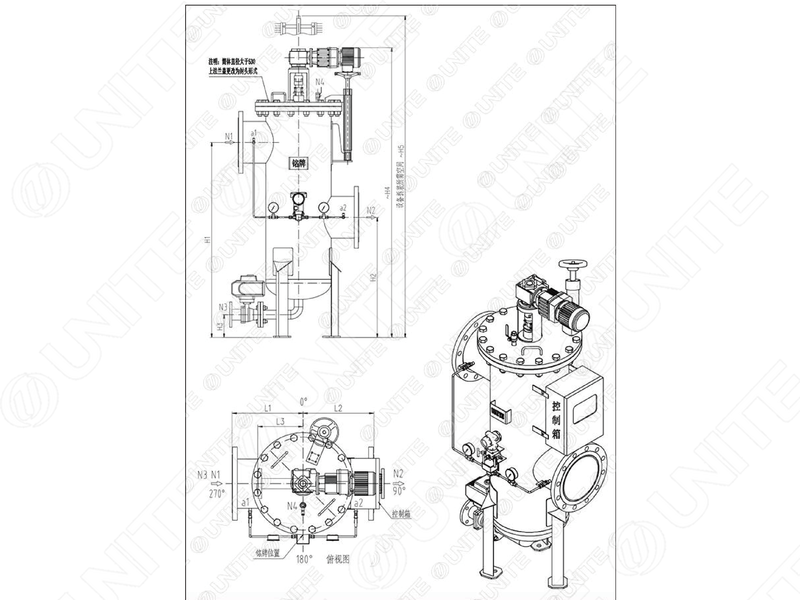

The liquid flows in from the inlet, flows outward from the inner surface of the filter element, and exits through the outlet connected to the lower end of the filter element. Impurity particles are intercepted on the inner surface of the filter element. When a certain amount of impurities accumulates on the filter element surface, a cleaning procedure is initiated either periodically or based on a set pressure difference. A geared motor/cylinder drives scraper blades attached to the filter element surface to rotate, scraping away impurities from the inner surface of the filter element. The impurities leave the filter element surface along with the scraper blades and fall into the bottom of the filter with the downward-flowing liquid. A rotating sweep plate sweeps the heavy impurities at the bottom into the sludge chamber. The impurities accumulate in the sludge chamber and at the bottom of the filter. The drain valve opens periodically, discharging the high-concentration liquid containing impurities from the drain port, which can then be recycled.
Fluid enters the filter and solid particles are captured by the filter element.
When preset pressure or time is reached, the system automatically initiates backwashing.
Removed particles are flushed out through the drain outlet.
Differential pressure is continuously monitored to detect filter contamination.
Clean fluid flows in reverse direction to remove trapped contaminants from the filter surface.
The system resumes normal filtration without interrupting operation.
| Standard design pressure level | 1.6MPa, 2.5MPa, 4.0MPa |
| Maximum design temperature | 0-250°C (depending on seals) |
| Precision range | 1-100um |
| Filter unit valve size | 1~20" |
| Filter unit filtration area | 1~60m2 |
| Backwash pressure difference | 50KPa-200KPa |
| Alarm pressure difference | < 200KPa |
| Main pipe inlet and outlet size | DN80-DN500 |
| Main pipe inlet and outlet flange type | loose flange or customer-specified |
| Main pipe inlet and outletconnection standard | HG/T20592-2009 (standard, compatible with DIN),HG/T20615-2009 (compatible with ANSI B16.5) |
| Filter element type and material | V-SLOT gap-type metal filter element,material 304/316L/duplex stainless steel |
| Shell liquid-contacting material | CS/304/316L/duplex stainless steel/titanium |
| Shell sealing material | NBR nitrile rubber (standard)/VITON (FKM) fluororubber |
| Fluid control valve | Pneumatic ball valve, protection class IP65/IP65, valve seat material PTFE |
| Utility supply requirement | AC220V, 0.4-0.6MPa clean and dry compressed air |
| Controsystem | Siemens PLC, S7-200, S7-1500 series, voltage 24V, IP55/IP65 |
| Pressure difference sensor | Pressure transmitter/pressure difference transmitter |
1. Working pressure: 0.2-5.0 Mpa
2. Working temperature: -196 ~ + 800 °C
3. The filtration precision: 0.5 microns to 200 microns4. The power supply voltage: 24 v DC or AC 220 v
5. Air pressure: 0.45 ~ 0.6 Mpa
6. Working mode: differential pressure, timing, manual7. Level of explosion-proof: Ex dl BT4, CT4, CT5
8. Optional filter: PA/PE polymer powder sintered filter, wedge filter, stainlesssteel powder sintered filter, titanium rod filter sintering net filter, etc
Utilizing Hastelloy and Duplex Steel, this system overcomes extreme heatand corrosion in PPS production, achieving precision desalination and ensuringthe quality of high-performance engineering plastics.
This duplex system ensures continuous water flow via a twin-barrel design, effectively preventing nozzle and equipment clogging caused by high-impurity mine water in both underground and surface operations.
The successful application of Unite's fully automatic backwash filtration system in lithium battery projects has realized fully automatic and closed o
