Unite uses multiple small-diameter cyclone separators to separate smalland large particles. Depending on the application, my cyclone librarycontains up to 200 units. The choice of 2" or 4" diameter cyclones willdepend on the system's gas flow rate.

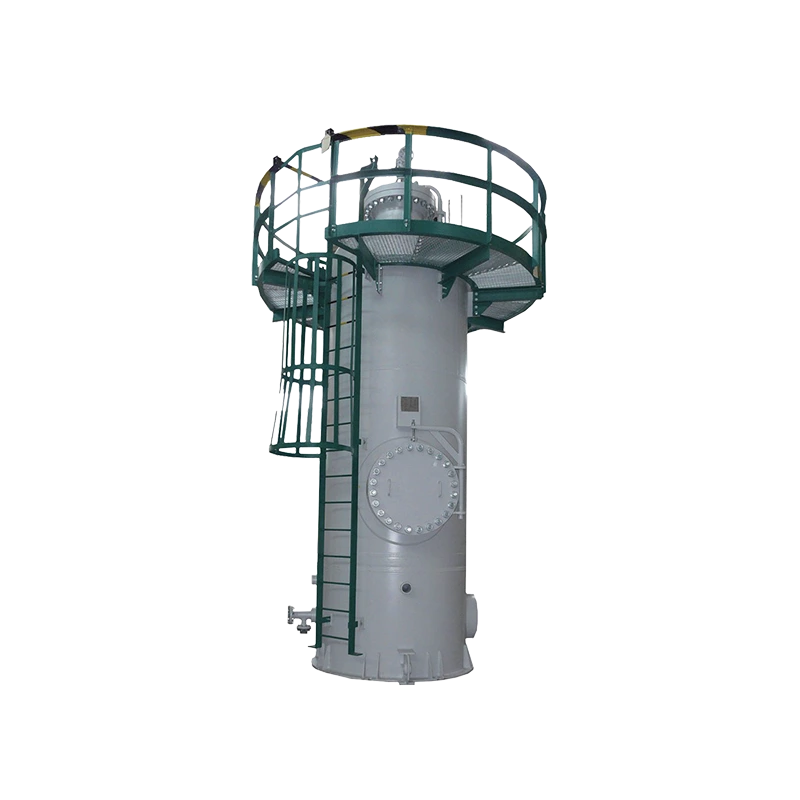

Unite Multi-Tube Separators
The structure of Unite multi-cyclone separators is designed to withstandyears of abrasive wear, making them robust and durable for variousairflow applications. For corrosive gas applications, key components ofthe Unite cyclone can be manufactured from corrosion-resistant steelalloys. Unite multi-cyclone separators require no maintenance and haverelatively low initial costs. Vertical and horizontal configurations areavailable.

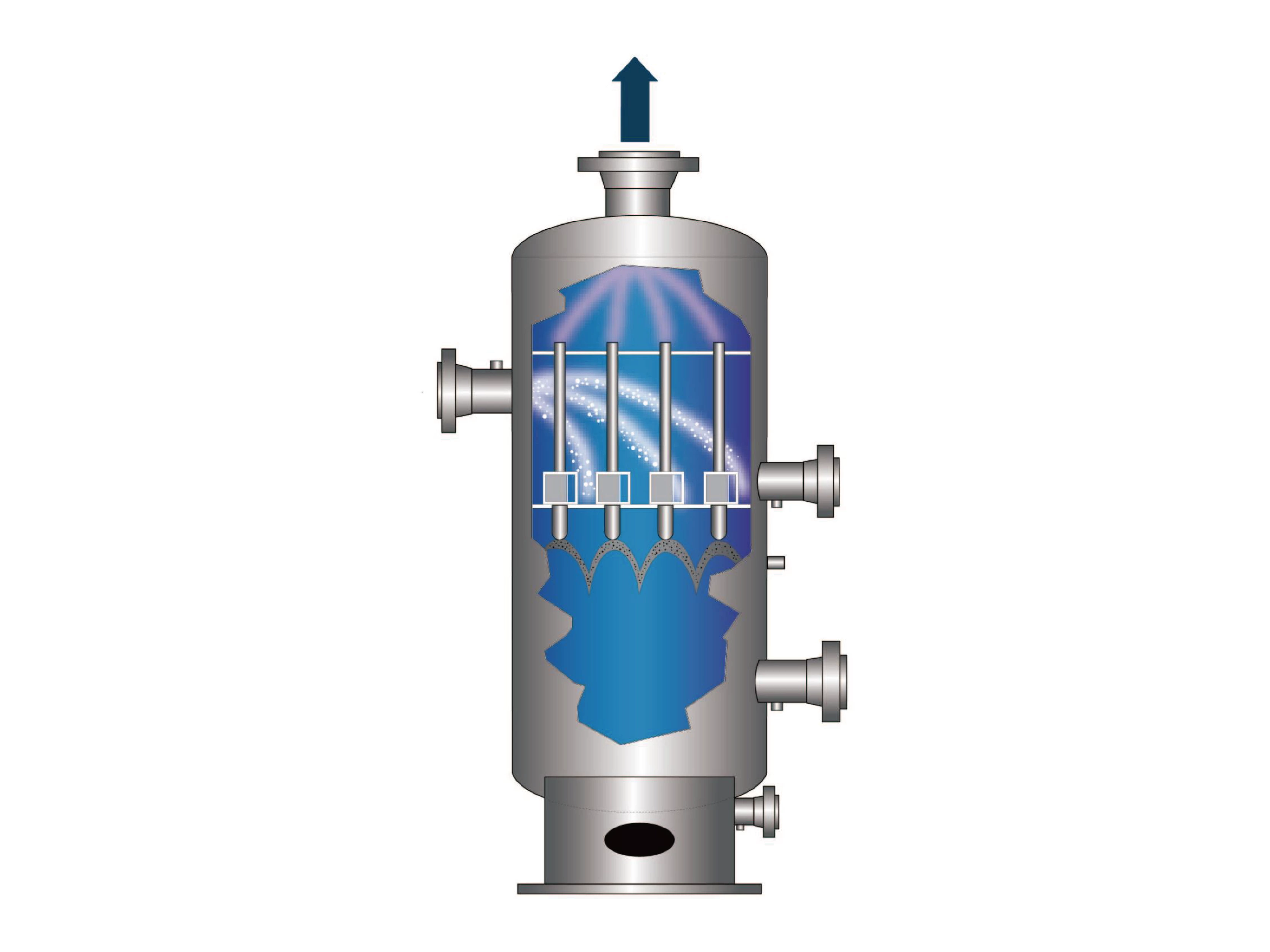

Unite Vortex Tube Separators
Unite vortex tube separators offer superior performance in a range ofapplications, including removing condensate from airflow, removingentrainment after distillation or absorption processes, and removingliquids from interstage and final discharge stages in reciprocatingcompressors.
Multi-cyclone scrubbers effectively remove solid particles and liquidsfrom gases using centrifugal force, without requiring moving parts.
The swirl tube exerts inertial forces on the entrained liquid as it passesthrough the inlet.

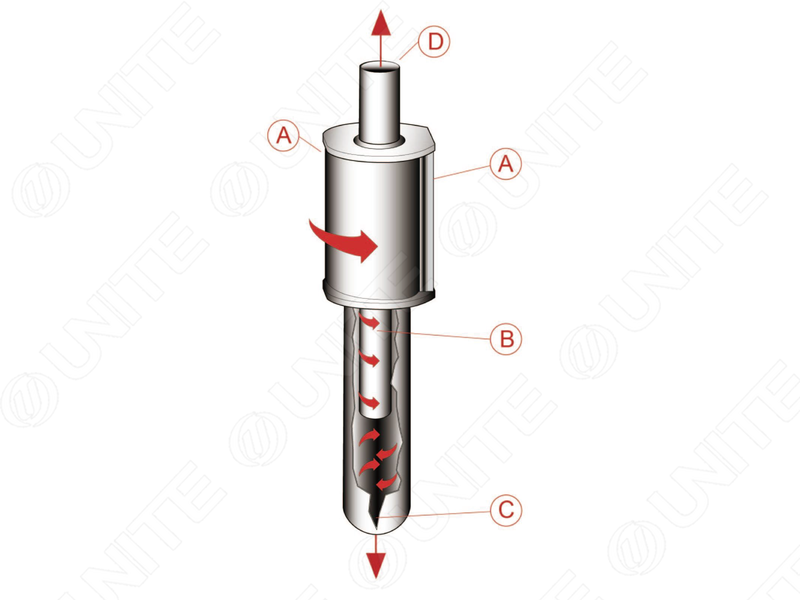

(A) The dirty gas enters the cyclone tube tangentially at two points.
(B) The tube casing forces the gas to form a swirling flow pattern.Centrifugal force throws the solids and liquids towards the inner wall ofthe cyclone tube.
(C) The solid and liquid particles are deposited on the cyclone tube walland collect at the bottom.(D) The clean gas flows downwards through the central annulus and thenupwards, exiting from the top outlet.
Industrial hydrocyclone desanding solutions, engineered for harshoffshore conditions, effectively remove solids on CIMC Raffles' deep-water rigsand FPSOs to protect downstream equipment.
Advanced filtration systems at Bosch's facilities effectively eliminate waterand particulates from stored diesel. This guarantees ultra-clean fuel and reliableactivation of emergency power systems.
A custom three-phase separator at Kazakhstan's Atyrau Refinery providesefficient gas-oil-water separation under extreme conditions. The systemsignificantly improves feedstock purity and protects downstream operations.
