How to Select an Automatic Backwash Filter: Flow Rate, Micron Rating and Pressure

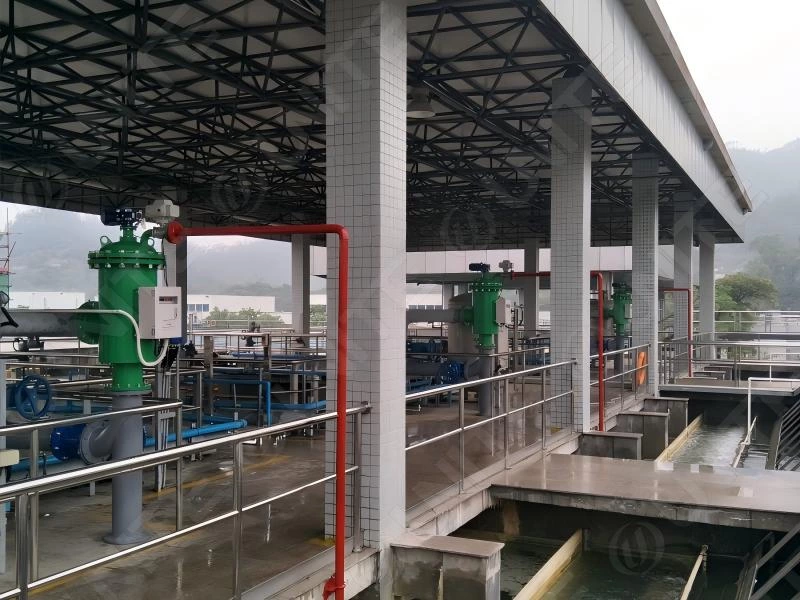

An automatic backwash filter is used to remove suspended solids from a liquid stream while supporting a cleaning cycle that reduces the need for frequent manual element replacement or shutdown. During normal filtration, liquid passes through the selected screen or filter media and retained solids accumulate on the filtration surface. When the operating condition reaches the configured trigger, a backwash sequence removes accumulated material and returns the filter to service.
The correct filter cannot be selected from flow rate alone. A reliable assessment must also consider the solids type and load, required particle-retention target, available pressure, acceptable pressure drop, cleaning fluid, discharge route, operating continuity, materials, controls and maintenance strategy.
Quick answer: Select an automatic backwash filter by matching the process flow and solids load to the required retention target, pressure-drop limit and cleaning sequence. Then verify the design against normal and upset conditions, available utilities and the plant’s control philosophy.
1. Define the Job of the Filter
First identify what the filter must protect or improve. It may protect a heat exchanger, cooling-water circuit, spray nozzle, pump, membrane, irrigation line, process reactor or another sensitive unit. It may also be used as a process-water filtration stage or as part of a larger treatment system.
The protected equipment determines the acceptable carryover and the consequences of a filtration failure. A system protecting a narrow nozzle may require a different approach from a system removing visible debris from a large cooling-water loop. State the downstream equipment, maximum permitted particle size or solids level, and whether the requirement is continuous protection, product quality or both.
| Question | Why it matters |
| What equipment is being protected? | Defines the consequence of solids carryover |
| What solids must be removed? | Guides the media/screen and cleaning approach |
| Is the duty continuous? | Determines whether automatic cleaning and uninterrupted flow are essential |
| What happens during cleaning? | Determines whether a parallel path, temporary flow reduction or process buffer is needed |
| Is the filter a final barrier or a prefilter? | Defines the target and expected solids load |
2. Flow Rate Is a Design Basis, Not the Whole Selection
Provide normal, minimum, maximum and upset flow. State whether the flow is steady, cyclical or intermittent. If several filters operate in parallel, specify the duty and standby philosophy. A maximum flow with no solids or viscosity context can lead to an unsuitable selection.
The filter should be evaluated at the conditions that create the highest realistic resistance, not just at the clean-water design point. State fluid temperature, viscosity and density because these can influence pressure drop and cleaning behavior. If the liquid changes over the day or across a production campaign, include the range.
A useful inquiry also states the allowed flow reduction during a cleaning cycle. Some plants can tolerate a short reduction; others require uninterrupted downstream flow. This affects whether the system needs a bypass, parallel filter, buffer volume or a cleaning sequence designed around the plant process.
3. Define the Particle-Retention Target Carefully
“Micron rating” can mean different things in different specifications. State whether the target is nominal or absolute, what particle shape and material are involved, and how performance will be measured. The required target should be connected to the downstream equipment or product-quality requirement.
Particle size distribution, shape, density and concentration influence the way solids accumulate on the filtration surface. Fibrous, sticky, deformable or irregular solids may behave differently from hard spherical particles. A screen that performs acceptably for one solids type may require a different cleaning arrangement for another.
Do not promise a particular removal percentage unless it has been defined by an agreed test method and verified for the actual process. The article can educate users about retention targets while the product page should present only approved technical data.
4. Estimate Solids Load and Cleaning Frequency
The amount of solids entering the filter affects the rate of pressure increase and the frequency of backwash. Provide average and peak solids concentration, particle type, expected debris events and seasonal or batch variation.
The cleaning sequence should remove retained material from the filtration surface and direct it to an appropriate drain, collection point or treatment stage. The backwash flow, pressure, duration and frequency must be evaluated against the actual solids. A large solids event may require a different response from normal low-level loading.
| Solids input | What to provide |
| Concentration | Average, maximum and expected upset concentration |
| Particle distribution | Size range, analytical method and sample basis |
| Particle behavior | Hard, soft, fibrous, sticky, abrasive, biological or deformable |
| Solids origin | Raw water, process carryover, corrosion, catalyst, scale or external ingress |
| Disposal route | Drain, recovery, waste treatment or collection vessel |
| Variability | Seasonal, batch, start-up, shutdown and upset conditions |
5. Evaluate Pressure Drop and Available Pressure
A filter selection should define the acceptable clean and dirty pressure drop, available inlet pressure, downstream pressure requirement and alarm/trip setpoints. The pressure profile during normal filtration and backwash should be considered together.
Available pressure influences whether the filter can maintain the required flow and carry out the cleaning sequence. If the process has limited pressure margin, the system may require careful sizing, a different arrangement, a pump, a parallel train or a revised cleaning method. These are project-specific decisions.
Record the pressure conditions at the filter inlet and outlet, not only at distant points in the plant. Pipework, valves, elevation and other equipment may consume part of the available pressure. If the process has a pump, include the pump curve or operating range where permitted.
6. Choose the Cleaning Method and Operating Sequence
Automatic backwash is a process sequence, not simply a valve function. Define what triggers cleaning: differential pressure, timer, flow reduction, filtrate quality, level, operator command or a combination. State whether the process must continue during cleaning and what happens to the backwash discharge.
A robust sequence should specify start conditions, valve actions, backwash duration, return-to-service conditions, alarms and what happens if cleaning is unsuccessful. Controls should be reviewed against the plant’s safety and automation philosophy.
The cleaning fluid may be the filtered liquid, a separate liquid, compressed gas or another approved medium. State its pressure, quality, availability and disposal path. Do not assume that the plant utility is suitable for backwash without checking chemistry and contamination risks.
7. Materials, Installation and Maintenance
Select wetted materials, seals and coatings against the actual liquid, temperature, pressure and cleaning fluids. If the stream contains chlorides, solvents, corrosive components or abrasive solids, include those factors in the engineering review.
Installation space and maintenance access are also selection criteria. State available height, width, lifting facilities, nozzle orientation, bypass arrangement, drain access and service clearances. A filter that cannot be inspected or serviced safely is not a successful installation, even if the filtration specification appears correct.
Define the maintenance philosophy. Will the site keep spare screens, seals and actuators? What is the desired inspection interval? Is a bypass permitted during maintenance? Which parts must be removable without opening the entire process line? These questions affect housing and layout choices.
8. Automatic Backwash Filter Selection Matrix
Use this matrix during the first engineering review.
| Selection factor | Questions | Required output |
| Flow | What are normal, maximum and upset flows? | Design flow basis and parallel/standby philosophy |
| Retention | Which particles must be removed and how is the target measured? | Approved retention target and test method |
| Solids load | How much material enters the filter and how variable is it? | Cleaning frequency and discharge basis |
| Pressure | What are clean/dirty pressure-drop limits and available pressure? | Alarm, trip and sizing criteria |
| Cleaning | What triggers and supports backwash? | Sequence description and utility requirement |
| Continuity | Must flow continue during cleaning? | Bypass, parallel train or allowable flow reduction |
| Materials | What liquid and cleaning chemistry contacts the equipment? | Approved materials/seals basis |
| Controls | How does the filter communicate with the plant? | Instrument list, logic and interface points |
| Maintenance | How will screens, seals and actuators be inspected? | Access and spares plan |
| Discharge | Where does backwash waste or recovered solids go? | Drain/collection interface and operating procedure |
Automatic Backwash Filter vs Manual Cleaning
Automatic cleaning can reduce manual intervention, but it introduces controls, valves, sensors, utilities and discharge requirements. The correct comparison is not “automatic is always better.” The project should compare the cost and risk of manual cleaning, consumables, process interruption, labor, waste handling and control-system complexity.
For a small, low-solids duty with infrequent service, a simple arrangement may be adequate. For a continuous process where shutdown is costly or access is difficult, an automatic sequence may provide greater operational value. The decision should be based on the actual duty cycle and maintenance plan.
Common Selection Mistakes
The first mistake is specifying a backwash filter from clean-water flow alone. The second is treating the micron target as independent of particle type and solids load. The third is omitting the backwash discharge route. A filter cannot be considered fully specified if the cleaning waste has nowhere suitable to go.
Another mistake is setting an automatic differential-pressure trigger without defining what happens when the filter does not recover after backwash. The control system should have an alarm and an operator response. Finally, do not omit the plant interface. Utilities, bypasses, drains, instrument signals and maintenance access can determine whether the proposed system is installable.
Data Needed for a Backwash Filter Proposal
Provide the liquid composition, normal/max flow, temperature, viscosity, pressure at inlet and outlet, solids description and concentration, target retention, allowable pressure drop, cleaning utility, backwash-discharge route, installation layout, materials standard, automation philosophy and maintenance requirements.
Configure an Automatic Backwash Filter with UNITE by sending the process information above. The product-page URL for Automatic Backwash Filter should be inserted after UNITE confirms the final live canonical URL.
Frequently Asked Questions
How do I select an automatic backwash filter?
Start with the process flow, fluid properties, solids type and load, required retention target, clean and dirty pressure-drop limits, available pressure, cleaning utility, discharge route, continuity requirement, materials and controls. The final selection should be checked against normal and upset conditions.
What flow rate should I use for sizing?
Provide normal, maximum, minimum and credible upset flow. Also state solids concentration, viscosity, temperature and the allowable pressure reduction during backwash. A clean-water flow rate alone is not a complete sizing basis.
What triggers an automatic backwash cycle?
Common triggers may include differential pressure, time, flow reduction, filtrate quality or operator command. The appropriate trigger and sequence depend on the process and must include alarm and fail-to-clean logic.
Does automatic backwash remove all maintenance?
No. It can reduce manual cleaning frequency in an appropriate duty, but screens, seals, valves, sensors and actuators still require inspection and maintenance. The site should define spare parts and service access before installation.
Where does the backwash fluid go?
The discharge route depends on the process. It may go to a drain, collection vessel, recovery step or treatment system. The route, flow, chemistry and containment requirements should be defined during design.
